DeWalt DWS780-LX 305mm XPS Compound Slide Mitre Saw 1675W 110V

• Product Code: DWS780-LX
• Model Number:
• Brand: DeWalt
• Barcode: 5035048332337
• Category: Clearance

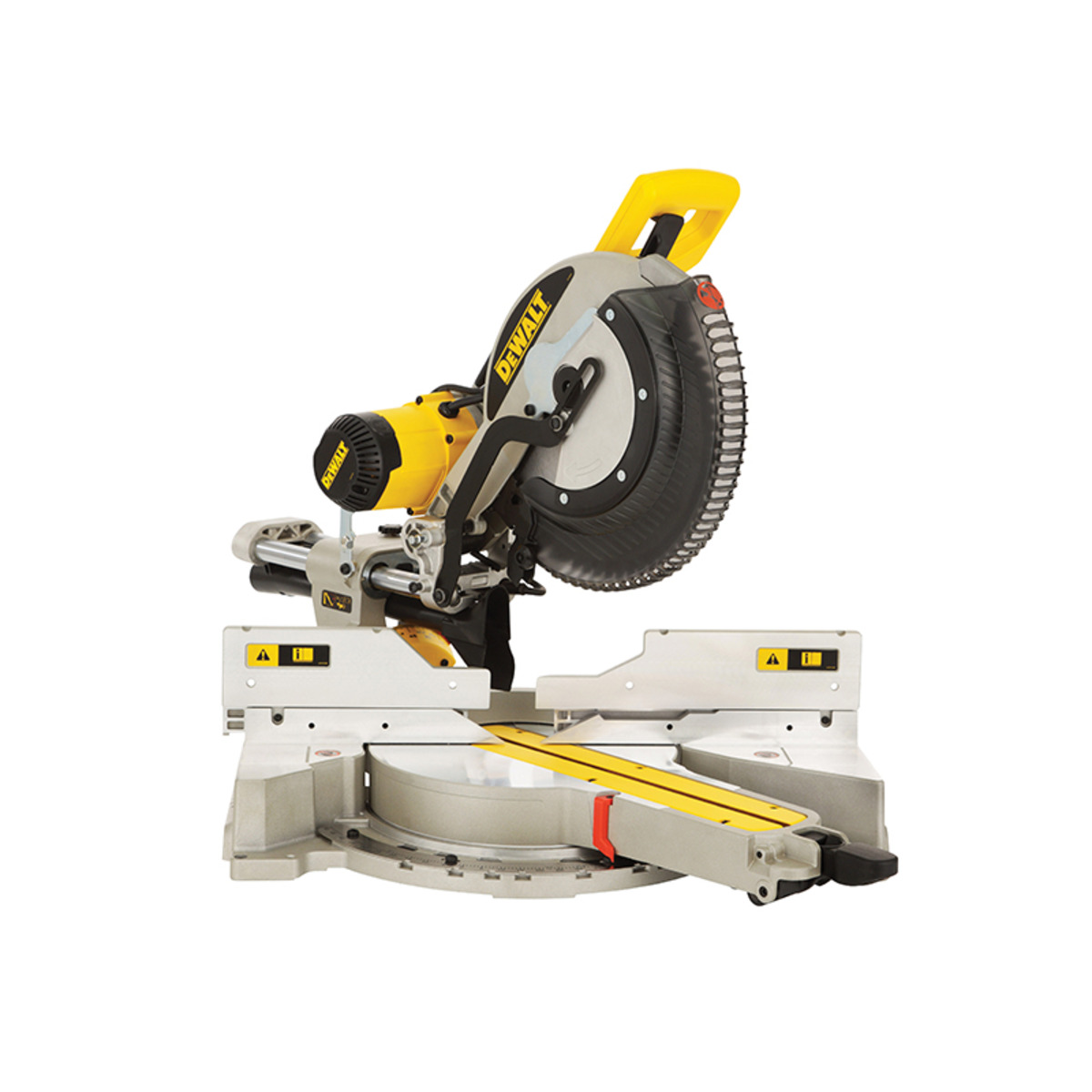

DeWalt DWS780-LX 110V 305mm Double Bevel Sliding Compound Mitre Saw

The DeWalt DWS780-LX is a professional 305mm sliding compound mitre saw designed to deliver exceptional cutting capacity, accuracy and versatility across demanding site and workshop applications. Powered by a heavy-duty 1675W motor, this 110V model is ideal for tradespeople working with large timber, framing materials, mouldings and other woodworking applications.

Featuring DeWalt's XPS shadow line cutting system, the DWS780 projects the blade shadow directly onto the workpiece, providing fast and accurate blade alignment without the need for calibration. The dual sliding fence and double-bevel design provide excellent support and flexibility when completing complex mitre and bevel cuts.

Features

• Powerful 1675W motor for demanding professional applications

• 305mm blade provides excellent cutting capacity

• XPS shadow line system provides fast and accurate cut alignment

• Double bevel design with adjustment up to 49° left and right

• Mitre adjustment up to 50° left and 60° right

• Dual horizontal slide rails for smooth and accurate operation

• Large dual sliding fence provides excellent material support

• Adjustable depth stop for grooving and rebating applications

• Electronic speed control for improved control across different materials

• Stainless steel mitre detent plate for repeatable accuracy

• Machined base and fence designed for high cutting accuracy

• Integrated side handles improve portability around the jobsite

• 110V site-compatible mains powered design

Specification

• Voltage: 110V / 115V

• Power Input: 1675W

• Blade Diameter: 305mm

• Blade Bore: 30mm

• No Load Speed: 1900–3600rpm

• Maximum Cross Cut Capacity at 90°: 349mm

• Maximum Mitre Capacity at 45°: 244mm

• Maximum Depth of Cut at 90°: 112mm

• Maximum Bevel Cross Cut Depth at 45°: 56mm

• Mitre Capacity: 50° Left / 60° Right

• Bevel Capacity: 49° Left / 49° Right

• Weight: 25.5kg

Includes

• 1x DeWalt DWS780-LX 110V 305mm Mitre Saw

• 1x 305mm 60-Tooth Saw Blade

• 2x Base Extensions

• 1x Material Clamp

• 1x Dust Bag

• 1x Blade Wrench

Warranty

DeWalt 1 year standard warranty, extendable to 3 years when registered within the required period.
