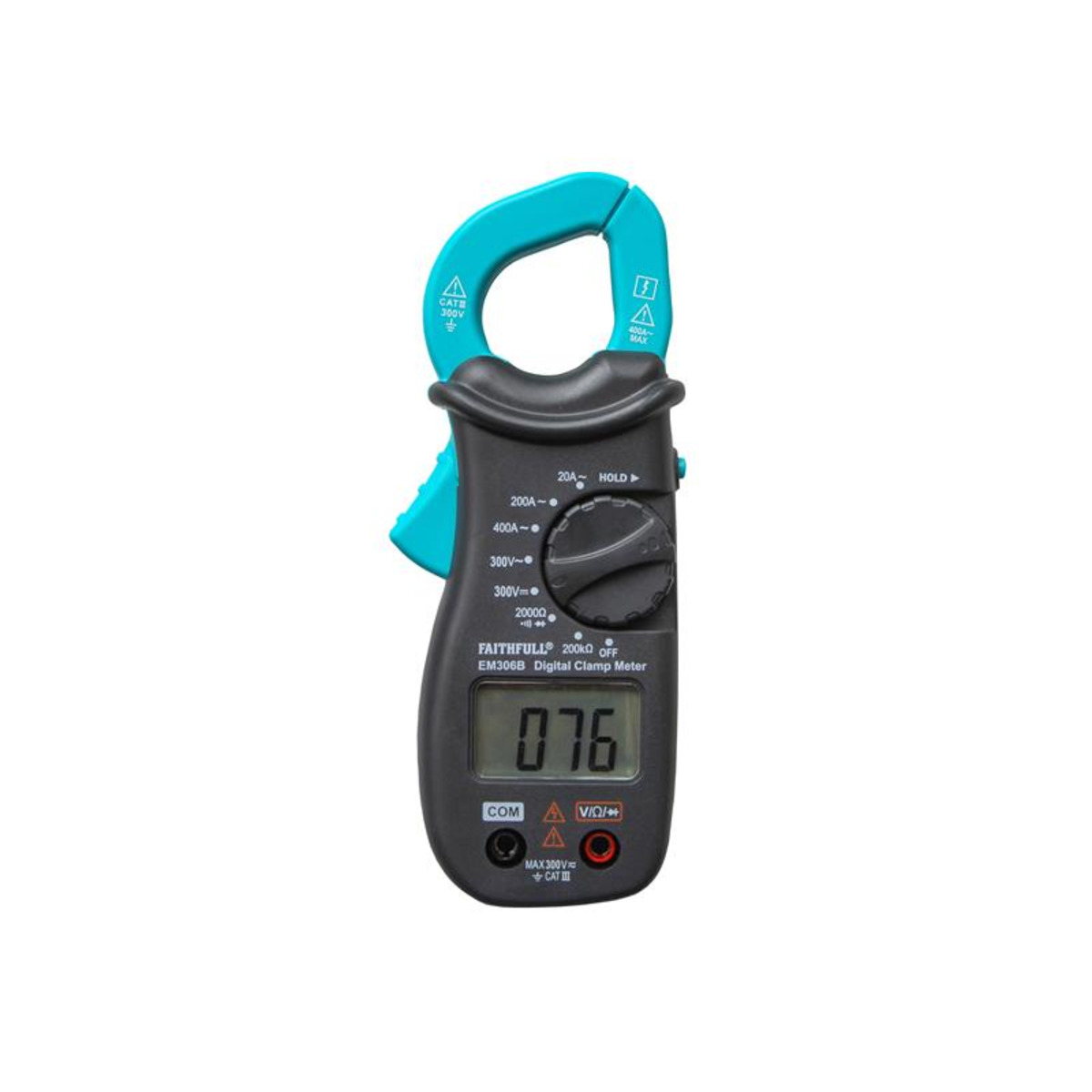

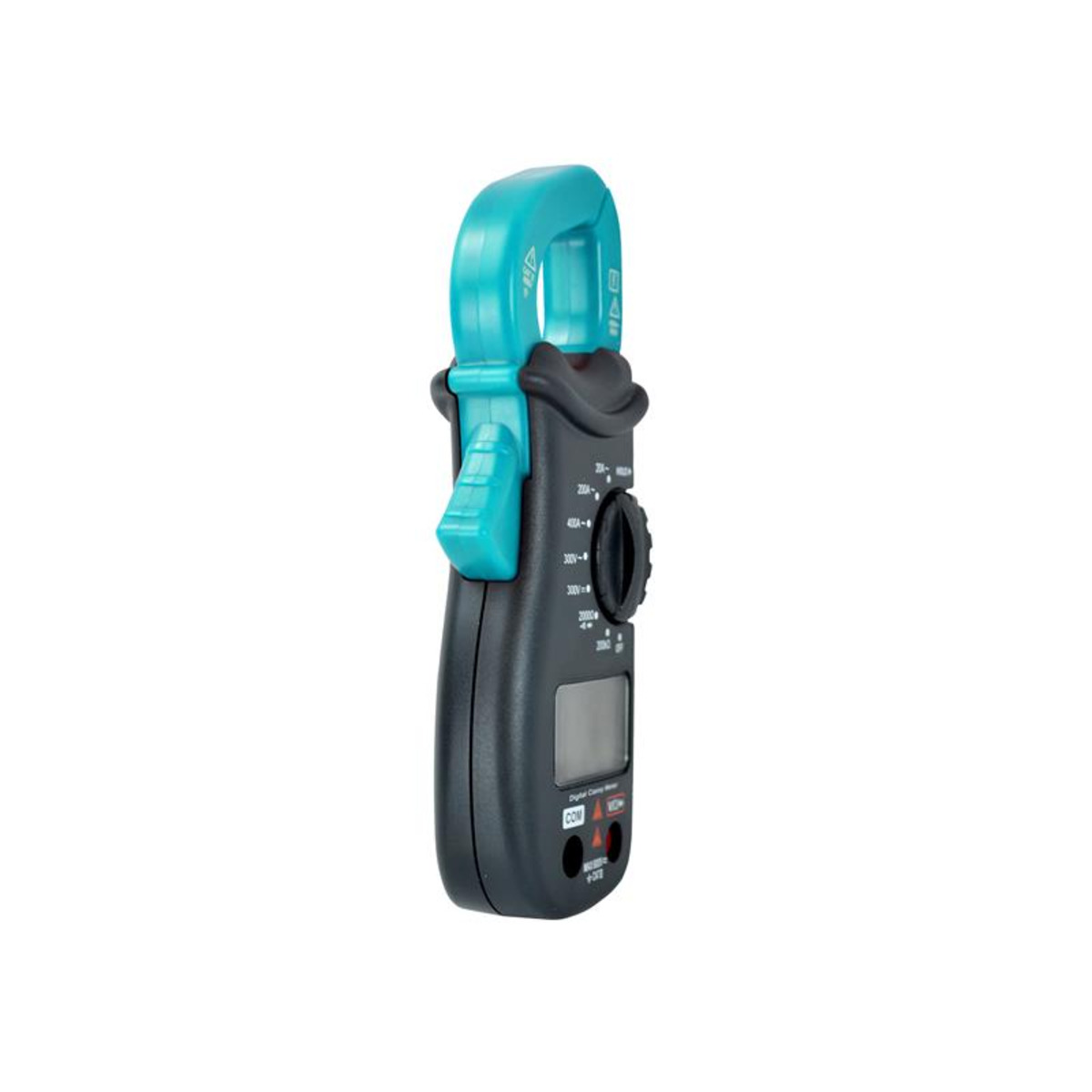

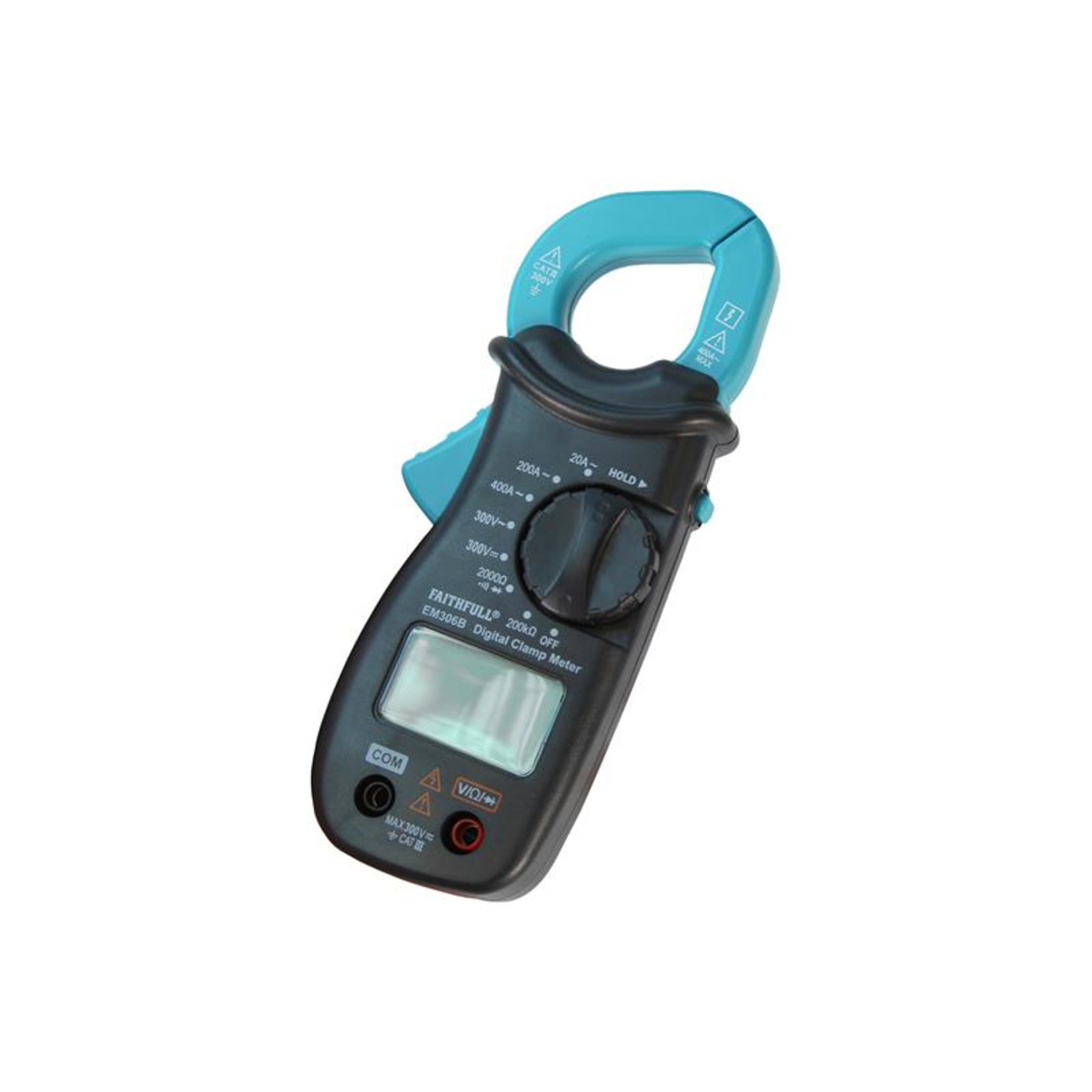

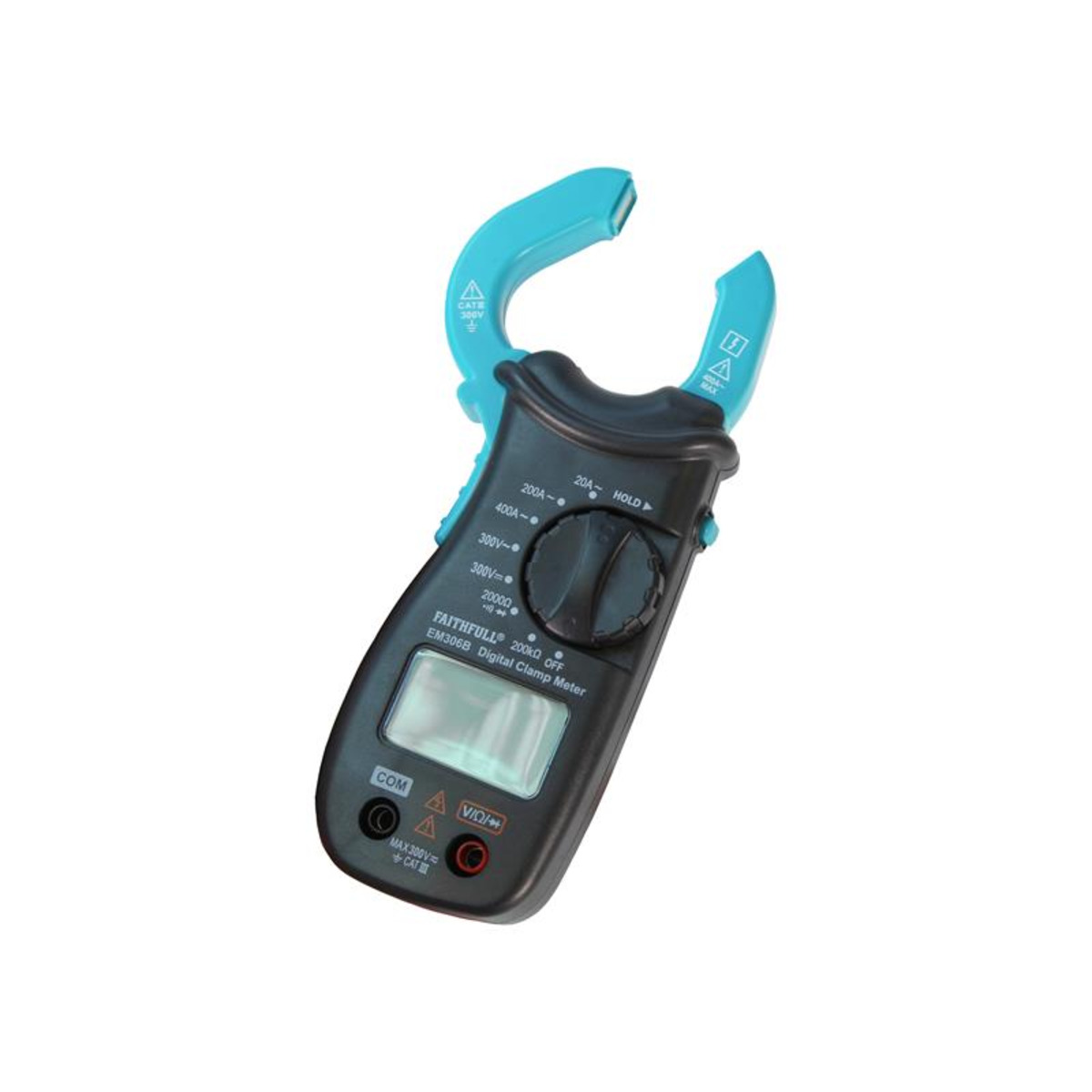

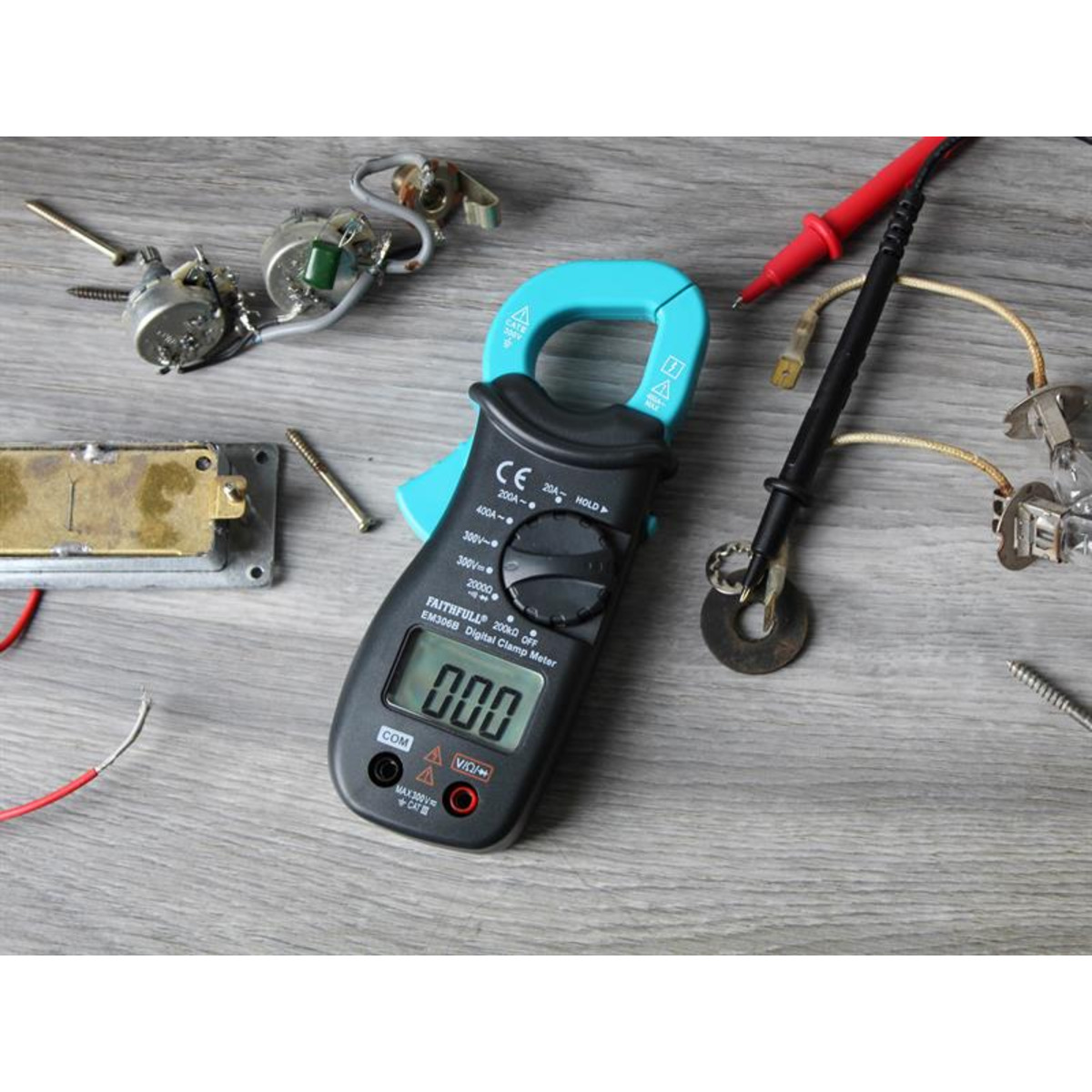

Mini Clamp Meter
The Faithfull Mini Clamp Meter is an ideal instrument for use in many laboratory, factory, warehouse and home applications. This compact electrical test tool combines a basic digital multimeter with a current sensor. The clamp can be used to measure current, and the probes are used to measure voltage.
Features include a 3.1/2 digit LCD display and a data hold function that allows the present reading to be held on screen.
Suitable for measuring AC/DC voltage, AC current, resistance and diodes.
Supplied with batteries, test leads and user manual.
Functions
Voltage DC: 300V, Input Impedance: 9M?
Voltage AC: 300V, Frequency Response: 40~400Hz
Current AC: 20/200/400A, Frequency Range: 50~60Hz
Resistance: 2000/200k?
Diode Check: Resolution: 1mV, Open Circuit Voltage about 3V
Continuity: Less than 30?
Specification:
Clamp Capacity: 25mm
Max. Measurable Conduction: 25mm
Power: 3 x 3V CR2032 batteries (supplied)
Dimensions: 151 x 65 x 34mm
Weight: approx. 125g (excluding battery)
-
Description
- Product Code: FAIDETCLAMP
- Brand: Faithfull
- Barcode: 5023969001265
- Category: Hand Tools
