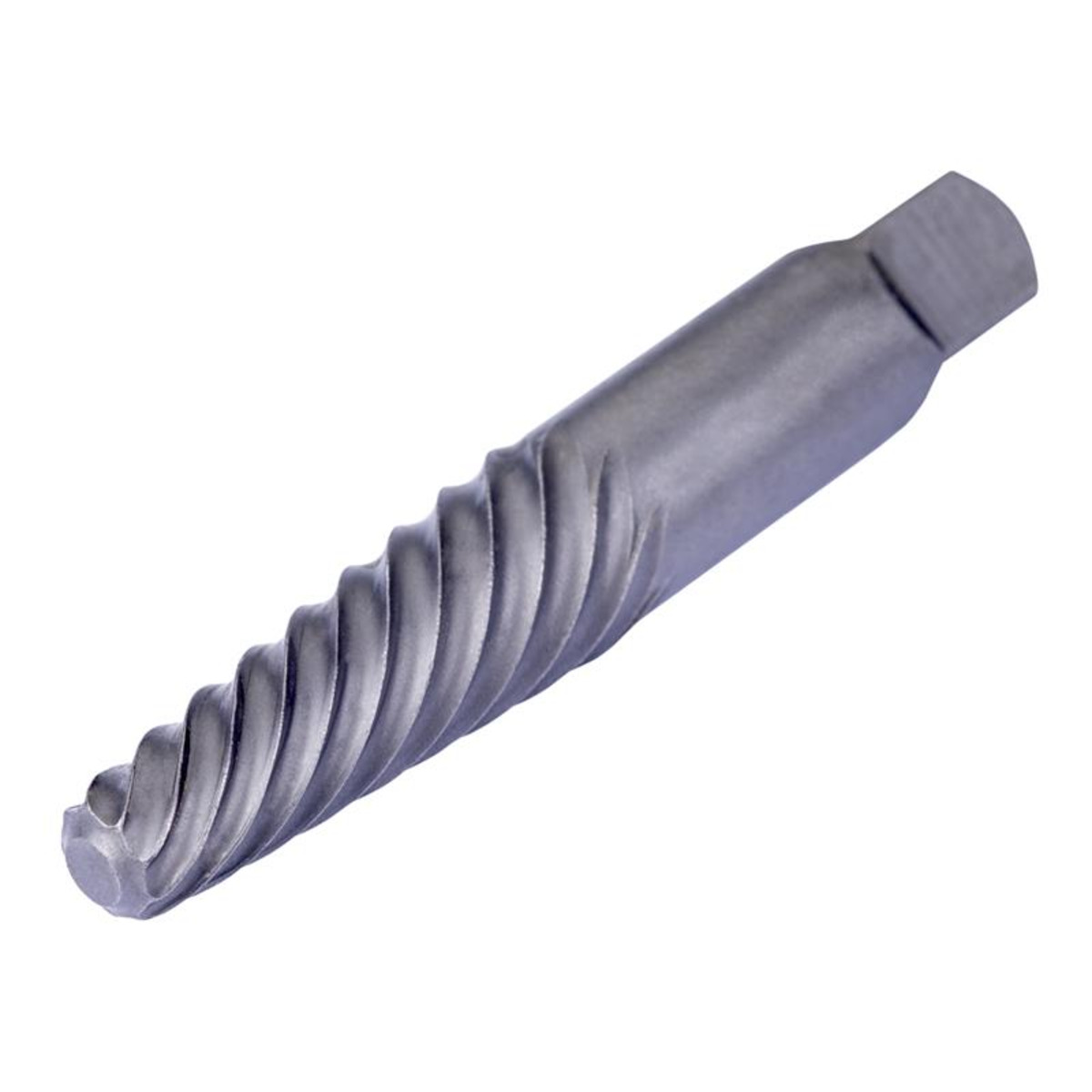

Dormer DORM9004 M9004 Screw Extractor M12-M14
SKU: DORM9004
1 x Dormer M9004 Screw Extractor M12-M14 Specifications: Bolt Size: M12 - M14 Drill Size for Low/Medium Tensile Screws: 5.5mm Drill Size for High Tensile Screws (+75 tons/sq.inch): 6mm Bolt Size Imperial: 7/16 - 9/16in Drill Size for Low/Medium Tensile Screws: 7/32in Drill Size for High Tensile Screws (+75 tons/sq.inch): 15/64in Cutting Diameter Step: 4.37mm Cutting Diameter Second Cutting Step (DC_2): 8mm Clamping Width (WSC): 6mm Clamping Length (LSC): 8mm Overall Length (OAL): 76.7mm Net Weight: 24.7g.
The Dormer M900 Screw Extractors can be used counter-clockwise to remove broken right-handed bolts & screws from threaded holes without damaging threads. It’s necessary to drill a guide hole of proper size before using the extractor.
Read More
-
Description
- Product Code: DORM9004
- Brand: Dormer
- Barcode: 3603607088906
- Category: Power Tool Accessories
1 x Dormer M9004 Screw Extractor M12-M14
Specifications:
Bolt Size: M12 - M14
Drill Size for Low/Medium Tensile Screws: 5.5mm
Drill Size for High Tensile Screws (+75 tons/sq.inch): 6mmBolt Size Imperial: 7/16 - 9/16in
Drill Size for Low/Medium Tensile Screws: 7/32in
Drill Size for High Tensile Screws (+75 tons/sq.inch): 15/64inCutting Diameter Step: 4.37mm
Cutting Diameter Second Cutting Step (DC_2): 8mm
Clamping Width (WSC): 6mm
Clamping Length (LSC): 8mmOverall Length (OAL): 76.7mm
Net Weight: 24.7g.The Dormer M900 Screw Extractors can be used counter-clockwise to remove broken right-handed bolts & screws from threaded holes without damaging threads. It’s necessary to drill a guide hole of proper size before using the extractor.
