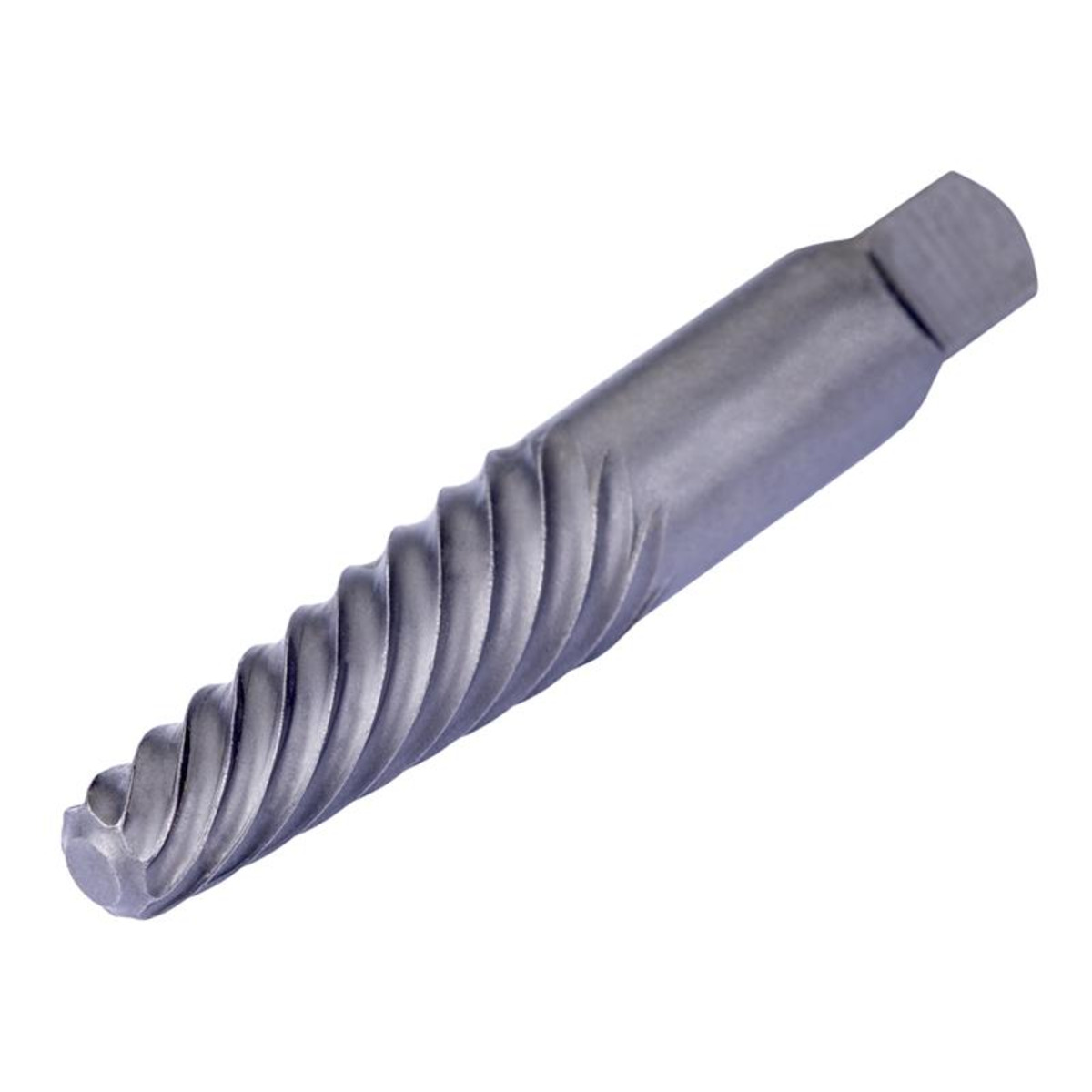

Dormer DORM9005 M9005 Screw Extractor M14-M20
SKU: DORM9005
1 x Dormer M9005 Screw Extractor M14-M20 Specifications: Bolt Size: M14 - M20 Drill Size for Low/Medium Tensile Screws: 7.2mm Drill Size for High Tensile Screws (+75 tons/sq.inch): 8mm Bolt Size Imperial: 9/16 - 3/4in Drill Size for Low/Medium Tensile Screws: 9/32in Drill Size for High Tensile Screws (+75 tons/sq.inch): 5/16in Cutting Diameter Step: 6.35mm Cutting Diameter Second Cutting Step (DC_2): 11.1mm Clamping Width (WSC): 8.3mm Clamping Length (LSC): 11.5mm Overall Length (OAL): 86.1mm Net Weight: 50g
The Dormer M900 Screw Extractors can be used counter-clockwise to remove broken right-handed bolts & screws from threaded holes without damaging threads. It’s necessary to drill a guide hole of proper size before using the extractor.
Read More
-
Description
- Product Code: DORM9005
- Brand: Dormer
- Barcode: 3603607088913
- Category: Power Tool Accessories
1 x Dormer M9005 Screw Extractor M14-M20
Specifications:
Bolt Size: M14 - M20
Drill Size for Low/Medium Tensile Screws: 7.2mm
Drill Size for High Tensile Screws (+75 tons/sq.inch): 8mmBolt Size Imperial: 9/16 - 3/4in
Drill Size for Low/Medium Tensile Screws: 9/32in
Drill Size for High Tensile Screws (+75 tons/sq.inch): 5/16inCutting Diameter Step: 6.35mm
Cutting Diameter Second Cutting Step (DC_2): 11.1mm
Clamping Width (WSC): 8.3mm
Clamping Length (LSC): 11.5mmOverall Length (OAL): 86.1mm
Net Weight: 50gThe Dormer M900 Screw Extractors can be used counter-clockwise to remove broken right-handed bolts & screws from threaded holes without damaging threads. It’s necessary to drill a guide hole of proper size before using the extractor.
