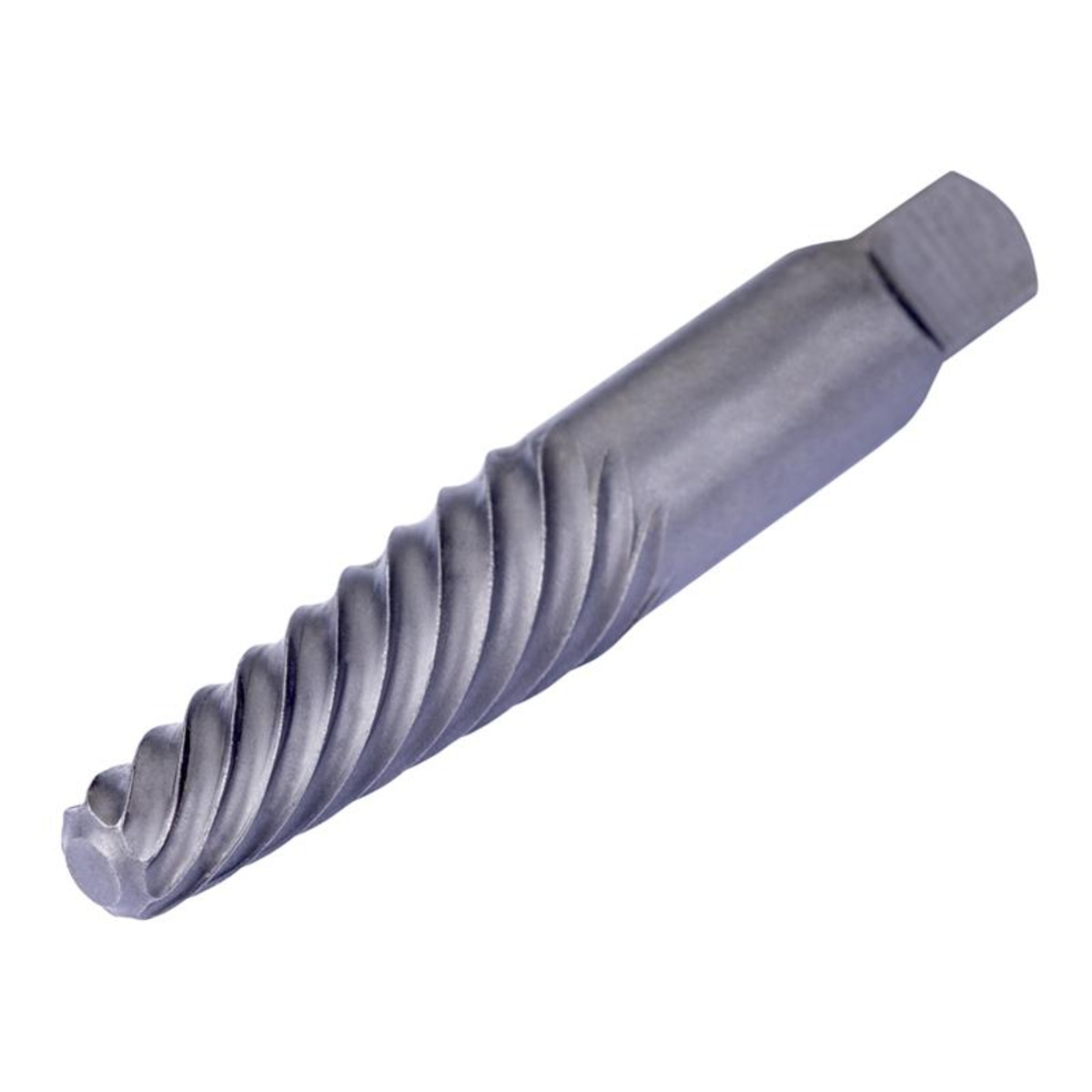

Dormer DORM9006 M9006 Screw Extractor M20-M30
SKU: DORM9006
1 x Dormer M9006 Screw Extractor M20-M30 Specifications: Bolt Size: M20 - M30 Drill Size for Low/Medium Tensile Screws: 10.5mm Drill Size for High Tensile Screws (+75 tons/sq.inch): 11mm Bolt Size Imperial: 3/4 - 1in Drill Size for Low/Medium Tensile Screws: 13/32in Drill Size for High Tensile Screws (+75 tons/sq.inch): 7/16in Cutting Diameter Step: 9.53mm Cutting Diameter Second Cutting Step (DC_2): 15.9mm Clamping Width (WSC): 11.9mm Clamping Length (LSC): 13.1mm Overall Length (OAL): 94.4mm Net Weight: 118g
The Dormer M900 Screw Extractors can be used counter-clockwise to remove broken right-handed bolts & screws from threaded holes without damaging threads. It’s necessary to drill a guide hole of proper size before using the extractor.
Read More
-
Description
- Product Code: DORM9006
- Brand: Dormer
- Barcode: 3603607088920
- Category: Power Tool Accessories
1 x Dormer M9006 Screw Extractor M20-M30
Specifications:
Bolt Size: M20 - M30
Drill Size for Low/Medium Tensile Screws: 10.5mm
Drill Size for High Tensile Screws (+75 tons/sq.inch): 11mmBolt Size Imperial: 3/4 - 1in
Drill Size for Low/Medium Tensile Screws: 13/32in
Drill Size for High Tensile Screws (+75 tons/sq.inch): 7/16inCutting Diameter Step: 9.53mm
Cutting Diameter Second Cutting Step (DC_2): 15.9mm
Clamping Width (WSC): 11.9mm
Clamping Length (LSC): 13.1mmOverall Length (OAL): 94.4mm
Net Weight: 118gThe Dormer M900 Screw Extractors can be used counter-clockwise to remove broken right-handed bolts & screws from threaded holes without damaging threads. It’s necessary to drill a guide hole of proper size before using the extractor.
