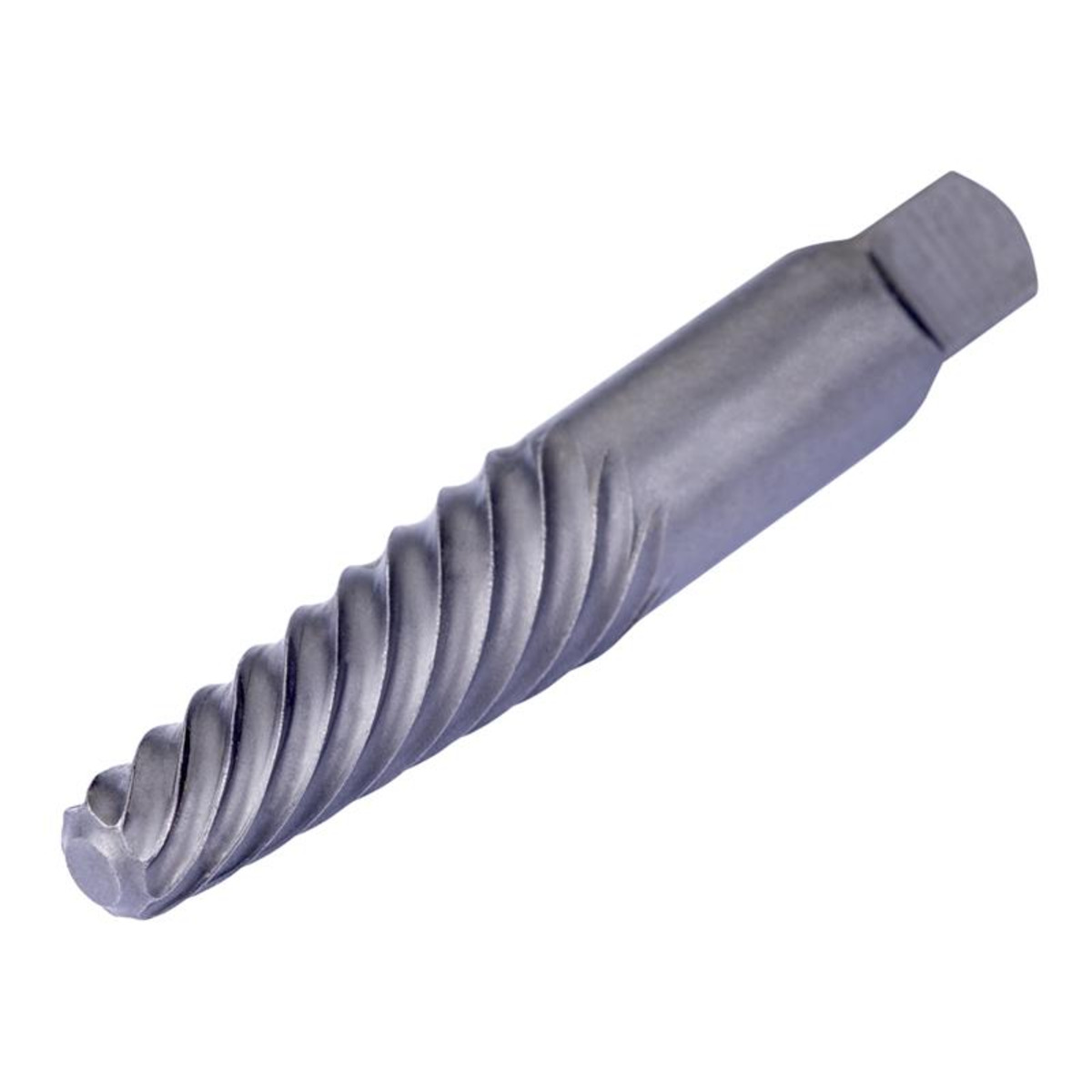

Dormer DORM9009 M9009 Screw Extractor M45-M50
SKU: DORM9009
1 x Dormer M9009 Screw Extractor M45-M50 Specifications: Bolt Size: M45 - M50 Drill Size for Low/Medium Tensile Screws: 27mm Drill Size for High Tensile Screws (+75 tons/sq.inch): 28mm Bolt Size Imperial: 1.3/4 - 2.1/8in Drill Size for Low/Medium Tensile Screws: 1.1/16in Drill Size for High Tensile Screws (+75 tons/sq.inch): 1.3/32in Cutting Diameter Step: 24.61mm Cutting Diameter Second Cutting Step (DC_2): 32.3mm Clamping Width (WSC): 24.6mm Clamping Length (LSC): 22.6mm Overall Length (OAL): 121.3mm Net Weight: 640g.
The Dormer M900 Screw Extractors can be used counter-clockwise to remove broken right-handed bolts & screws from threaded holes without damaging threads. It’s necessary to drill a guide hole of proper size before using the extractor.
Read More
-
Description
- Product Code: DORM9009
- Brand: Dormer
- Barcode: 3603607088951
- Category: Power Tool Accessories
1 x Dormer M9009 Screw Extractor M45-M50
Specifications:
Bolt Size: M45 - M50
Drill Size for Low/Medium Tensile Screws: 27mm
Drill Size for High Tensile Screws (+75 tons/sq.inch): 28mmBolt Size Imperial: 1.3/4 - 2.1/8in
Drill Size for Low/Medium Tensile Screws: 1.1/16in
Drill Size for High Tensile Screws (+75 tons/sq.inch): 1.3/32inCutting Diameter Step: 24.61mm
Cutting Diameter Second Cutting Step (DC_2): 32.3mm
Clamping Width (WSC): 24.6mm
Clamping Length (LSC): 22.6mmOverall Length (OAL): 121.3mm
Net Weight: 640g.The Dormer M900 Screw Extractors can be used counter-clockwise to remove broken right-handed bolts & screws from threaded holes without damaging threads. It’s necessary to drill a guide hole of proper size before using the extractor.
