DeWalt DCH172N-XJ 18V XR Brushless Ultra Compact SDS+ Rotary Hammer Bare Unit

• Product Code: DCH172N-XJ
• Model Number:
• Brand: DeWalt
• Barcode: 5035048735695
• Category: Percussion & Rotary Drills

DEWALT DCH172N 18V XR Brushless Compact SDS Plus Hammer Drill Body Only

The DEWALT DCH172N 18V XR Brushless Compact SDS Plus Hammer Drill is designed for fast anchor drilling and fixing work in concrete and masonry where a lightweight tool makes all the difference. Its ultra-compact body makes it ideal for overhead drilling, working in ceiling voids or tight corners where larger SDS drills can be difficult to handle.

Powered by a high-efficiency brushless motor, the drill delivers 1.4 joules of impact energy with up to 4980 blows per minute and a no load speed of 1060rpm. Two operating modes allow switching between rotary hammer and rotary drilling depending on the task. The low vibration design helps reduce fatigue during longer periods of use, while the integrated LED work light improves visibility in darker working areas. A tether point adds additional safety when working at height.

Specification

• Voltage 18V XR
• Impact energy 1.4 joules
• No load speed 1060rpm
• Blows per minute 4980bpm
• Max drilling capacity concrete 16mm
• Max drilling capacity wood 16mm
• Max drilling capacity metal 10mm
• Tool holder SDS Plus
• Length 283mm
• Height 176mm
• Width 73mm
• Weight 1.8kg
• Vibration level 8.8m/s²
• Product code DCH172N

Included

1 x DEWALT DCH172N 18V XR Brushless Compact SDS Plus Hammer Drill Body Only

Side handle

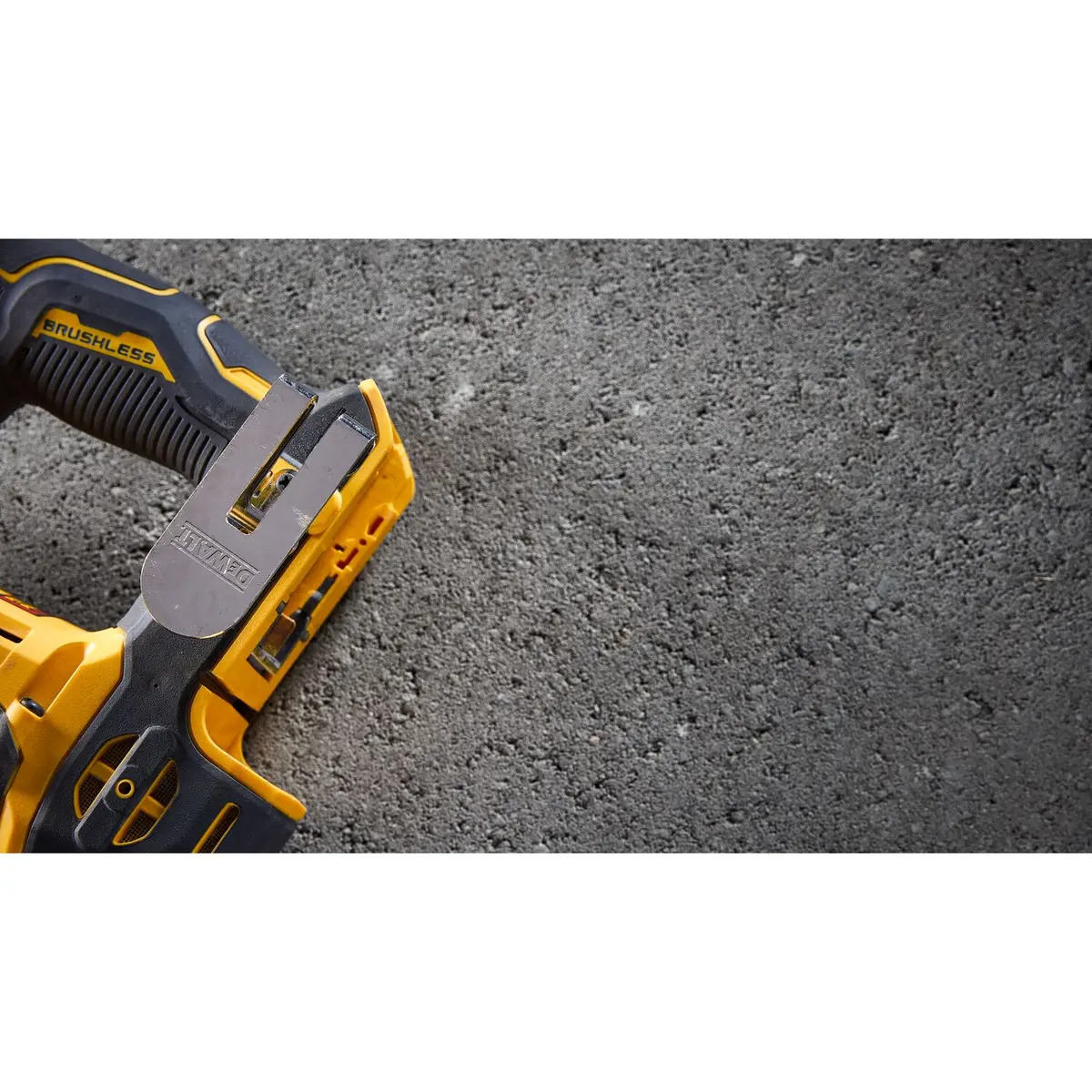

Belt hook

Manufacturer warranty 1 year standard warranty, extendable to 3 years subject to DEWALT product registration.

A compact SDS drill suited to electricians, mechanical installers and site trades who regularly drill anchors into masonry but want something lighter to handle all day. Many Wow Tools customers choose this model when working overhead or in tighter spaces where a full-size SDS would be overkill.
