Sealey VS8813 OBD Breakout Box 16-Pin 12V/24V
SKU: VS8813

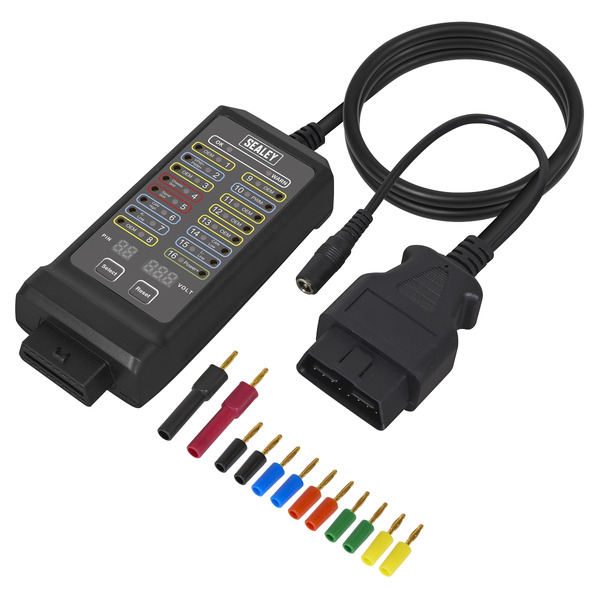

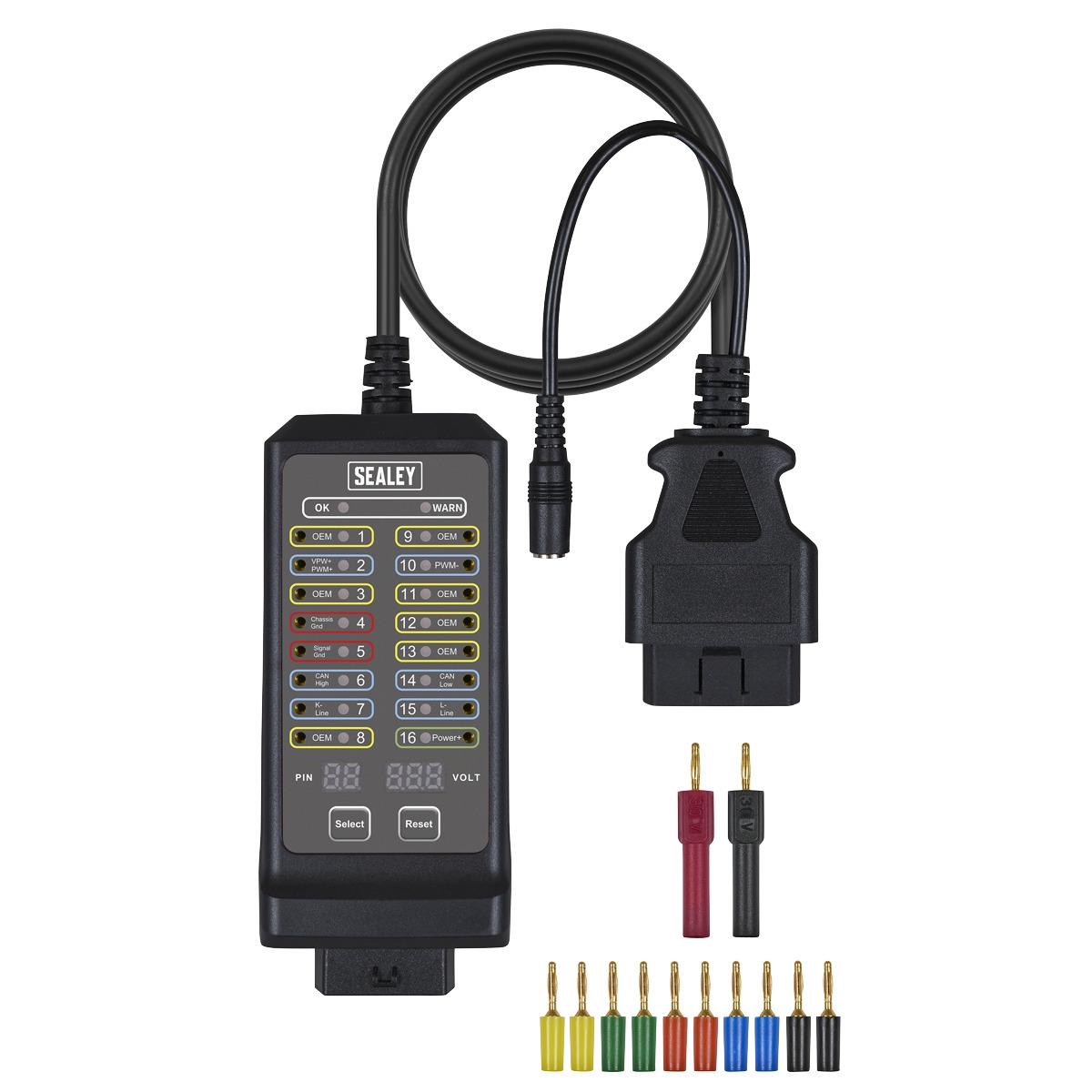

TESTS THE ON-BOARD DIAGNOSTOC PORT - For any faults before connecting other diagnostic devices to the DLC. UNIQUE DESIGN – The breakout box can be connected in series with 16-pin OBDII/EOBDII diagnostic equipment. CONNECTS TO MULTIMETERS AND OSCILLOSCOPES – To enable further testing. COMPATIBLE - With 12 and 24V systems. SELECTABLE PIN VOLTAGE INDICATOR - Shows the real-time voltage of the selected pin. COMMUNICCATION PROTOCOL INDICATOR - Pin 6 = CAN H, Pin 14 = CAN L, Pin 2 = VPW+, PWM+, Pin 10 = PWM-, Pin 7 = K_LINE and Pin 15 = L_LINE. OVERLOAD PROTECTION - Protects any connected diagnostic equipment from damage.
Read More
-
Description
- Product Code: VS8813
- Brand: Sealey
- Barcode: 5054630471650
- Category: Power Tools
- TESTS THE ON-BOARD DIAGNOSTOC PORT - For any faults before connecting other diagnostic devices to the DLC.

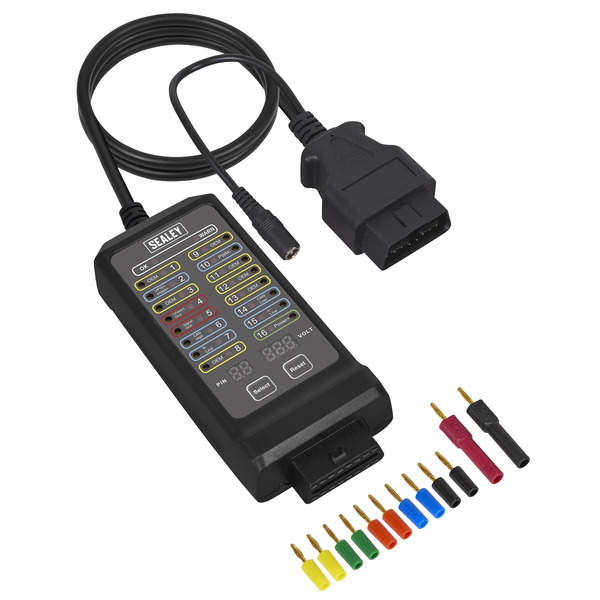

- UNIQUE DESIGN – The breakout box can be connected in series with 16-pin OBDII/EOBDII diagnostic equipment.

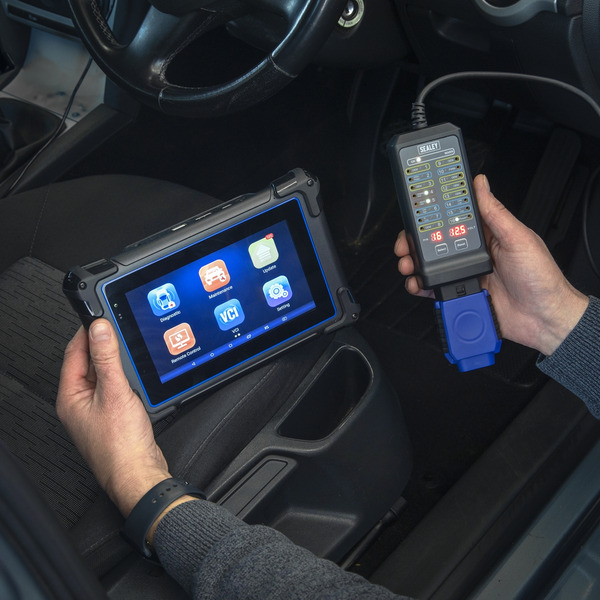

- CONNECTS TO MULTIMETERS AND OSCILLOSCOPES – To enable further testing.
- COMPATIBLE - With 12 and 24V systems.

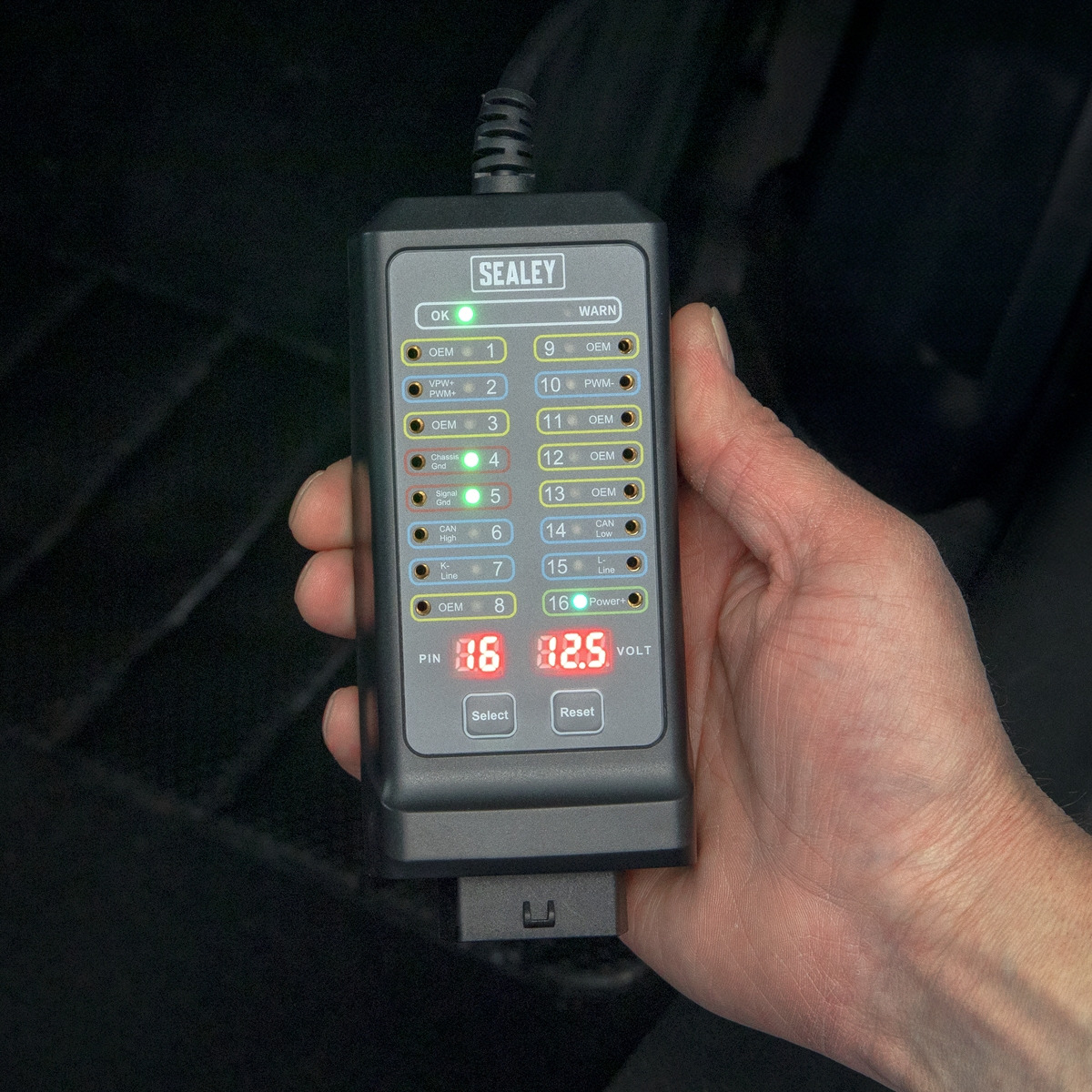

- SELECTABLE PIN VOLTAGE INDICATOR - Shows the real-time voltage of the selected pin.

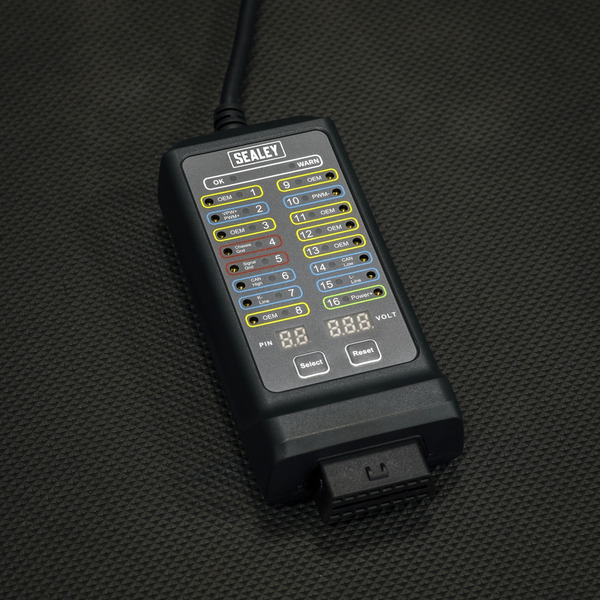

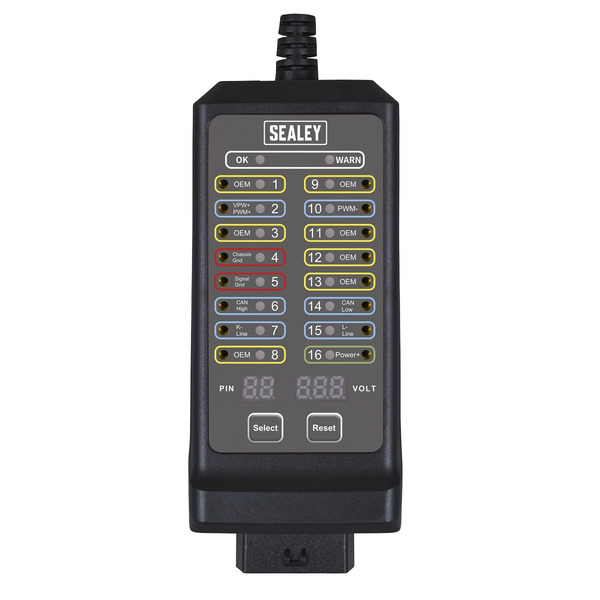

- COMMUNICCATION PROTOCOL INDICATOR - Pin 6 = CAN H, Pin 14 = CAN L, Pin 2 = VPW+, PWM+, Pin 10 = PWM-, Pin 7 = K_LINE and Pin 15 = L_LINE.
- OVERLOAD PROTECTION - Protects any connected diagnostic equipment from damage.
