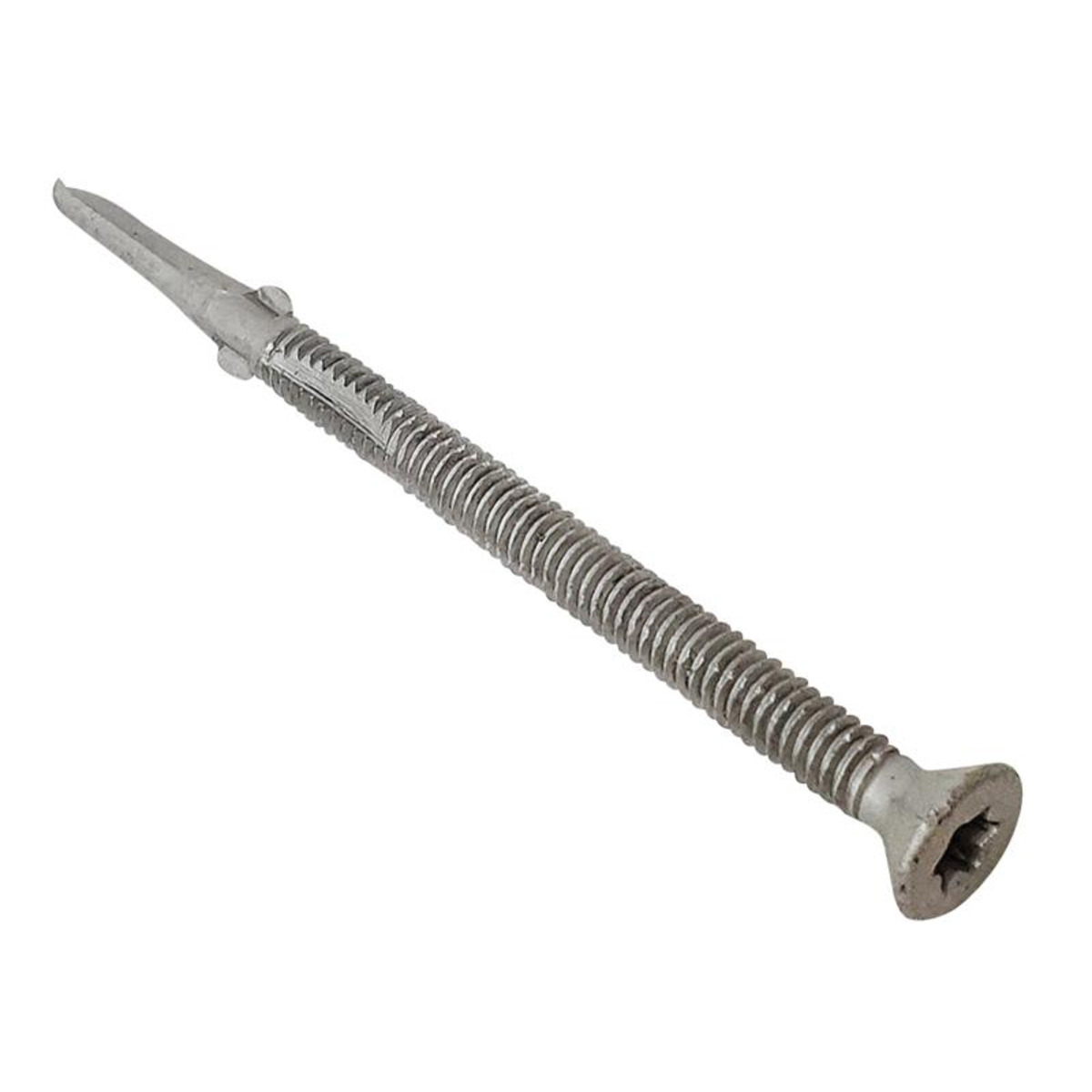

TechFast Timber to Steel CSK/Wing Screw No.3 Tip 5.5 x 100mm Box 100
These Forgefix TechFast Timber to Steel CSK/Wing Screws have the following specification:
Size: 5.5 x 100mm
Clamping Thickness: 80mm
Effective Thread Length: 79mm
Pack Size: 100
Drill Tip: No.3
No.3 drill tip for self-drilling heavy gauge steel up to 5mm.
Forgefix TechFast Timber to Steel CSK/Wing Screws are used to join timber to steel frame buildings. The screws are fitted with breakaway wings that create a clearance hole to protect thread from engaging timber when drilling through. Breakaway wings will ream a hole, then break-off when they contact the metal surface to be drilled. The thread will then engage with metal. They have a TORX® compatible insert for a higher transmission of power. With improved countersinking from recessed ribs.
Fire and corrosion resistant. Complies with EU Safety, Health and Environmental requirements.
-
Description
- Product Code: FORTFC55100L
- Brand: ForgeFix
- Barcode: 5028485194477
- Category: Screws, Nails & Fixings
These Forgefix TechFast Timber to Steel CSK/Wing Screws have the following specification:
Size: 5.5 x 100mm
Clamping Thickness: 80mm
Effective Thread Length: 79mm
Pack Size: 100
Drill Tip: No.3No.3 drill tip for self-drilling heavy gauge steel up to 5mm.
Forgefix TechFast Timber to Steel CSK/Wing Screws are used to join timber to steel frame buildings. The screws are fitted with breakaway wings that create a clearance hole to protect thread from engaging timber when drilling through. Breakaway wings will ream a hole, then break-off when they contact the metal surface to be drilled. The thread will then engage with metal. They have a TORX® compatible insert for a higher transmission of power. With improved countersinking from recessed ribs.
Fire and corrosion resistant. Complies with EU Safety, Health and Environmental requirements.
