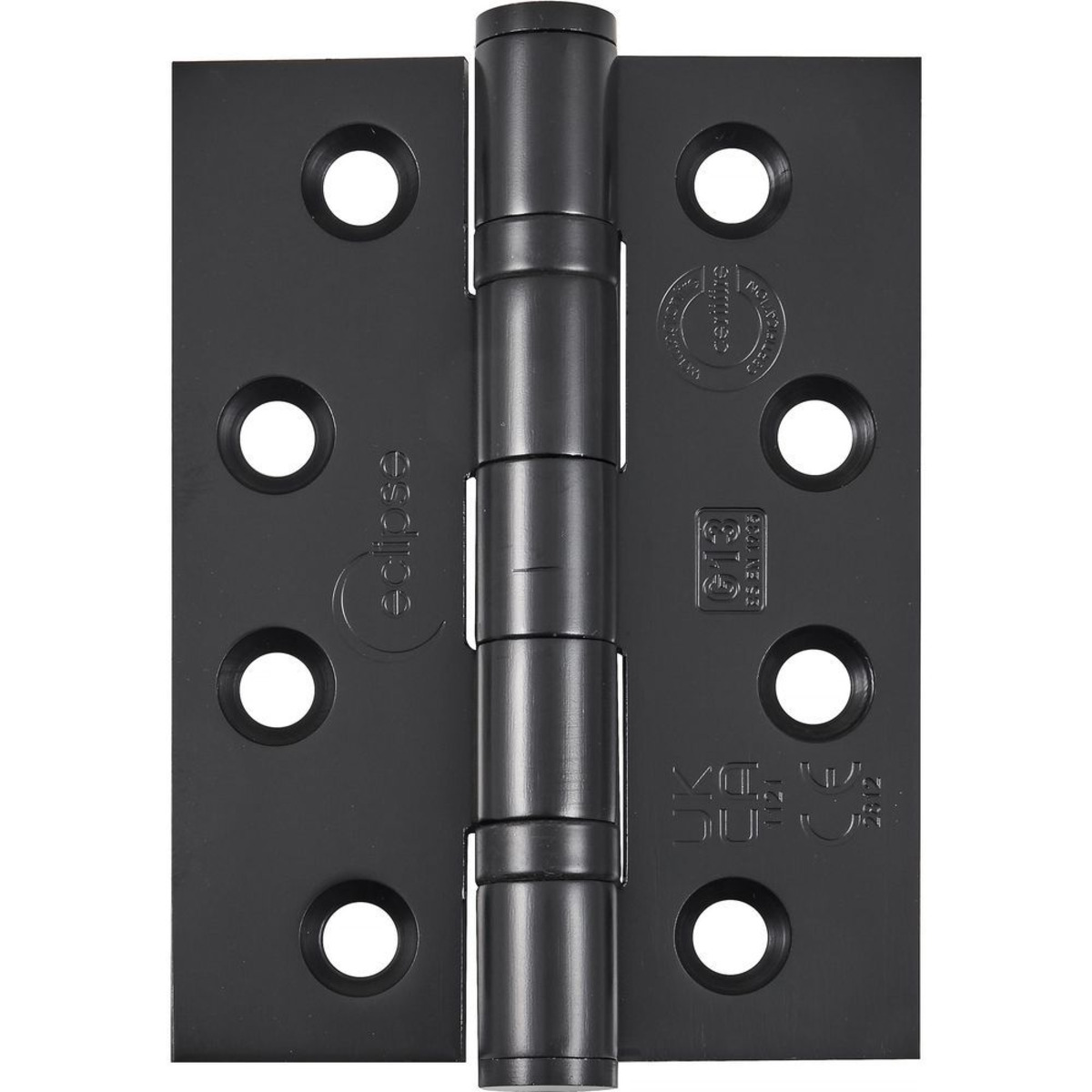

Eclipse Grade 13 Ball-Bearing Hinge (102 × 76 × 3 mm)
Buy the Eclipse Grade 13 Ball-Bearing Hinge from Wow Tools.
Transform any door - timber or steel - into a masterpiece of strength and precision. Engineered for heavy-duty use, this hinge carries up to 120 kg of door mass (Grade 13). Precision ball bearings deliver whisper-quiet, frictionless motion tested to 200 000 cycles under BS EN 1935. Crafted from SUS 201 stainless steel with a sleek black finish, it resists corrosion and wear in interior or exterior environments. Independently fire-rated FD 30/60/90/120 min on timber and FD 240 min on steel (BS EN 1634). Leaves measure 102 × 76 × 3 mm at 12-gauge thickness and include six 12 × 1½" Pozi-drive, ¾" threaded screws for rapid installation. 3 Pack.
Specification
Material: SUS 201 stainless steel
Performance Grade: Grade 13 (120 kg door mass)
Endurance Rating: 200 000 cycles (BS EN 1935)
Fire Rating: FD 30/60/90/120 min timber; FD 240 min steel (BS EN 1634)
Leaf Dimensions: 102 × 76 × 3 mm
Leaf Thickness: 12-gauge countersunk
Fixings Included: Six 12 × 1½" Pozi-drive, ¾" threaded screws
Certifications: CE 2812, UKCA 1121, Certifire CF336
Finish: Black

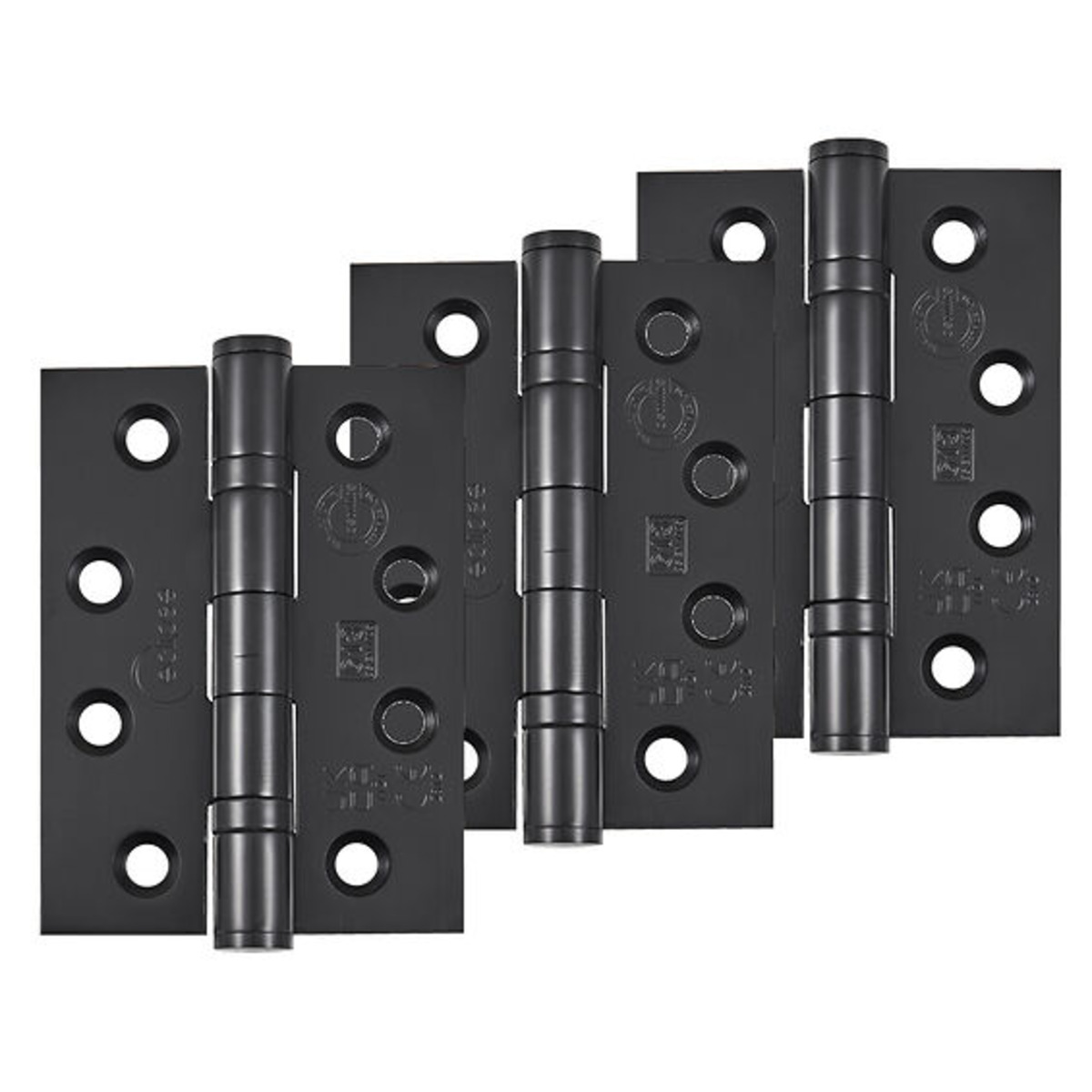

Pack Quantity: 3 Pk
Recommended by the Wow Tools team for unmatched durability, fire-safe performance and precision craftsmanship.
-
Description
- Product Code: PK920
- Brand: Eclipse
- Barcode: 5032968009202
- Category: Hinges & Catches
Eclipse Grade 13 Ball-Bearing Hinge (102 × 76 × 3 mm)
Buy the Eclipse Grade 13 Ball-Bearing Hinge from Wow Tools.
Transform any door - timber or steel - into a masterpiece of strength and precision. Engineered for heavy-duty use, this hinge carries up to 120 kg of door mass (Grade 13). Precision ball bearings deliver whisper-quiet, frictionless motion tested to 200 000 cycles under BS EN 1935. Crafted from SUS 201 stainless steel with a sleek black finish, it resists corrosion and wear in interior or exterior environments. Independently fire-rated FD 30/60/90/120 min on timber and FD 240 min on steel (BS EN 1634). Leaves measure 102 × 76 × 3 mm at 12-gauge thickness and include six 12 × 1½" Pozi-drive, ¾" threaded screws for rapid installation. 3 Pack.Specification
Material: SUS 201 stainless steel
Performance Grade: Grade 13 (120 kg door mass)
Endurance Rating: 200 000 cycles (BS EN 1935)
Fire Rating: FD 30/60/90/120 min timber; FD 240 min steel (BS EN 1634)
Leaf Dimensions: 102 × 76 × 3 mm
Leaf Thickness: 12-gauge countersunk
Fixings Included: Six 12 × 1½" Pozi-drive, ¾" threaded screws
Certifications: CE 2812, UKCA 1121, Certifire CF336
Finish: Black
Pack Quantity: 3 PkRecommended by the Wow Tools team for unmatched durability, fire-safe performance and precision craftsmanship.
