SIP SIP-03685 1 TON Foldable Engine Crane - 03685

• Product Code: SIP-03685
• Model Number:
• Brand: SIP
• Barcode: 5012713036851

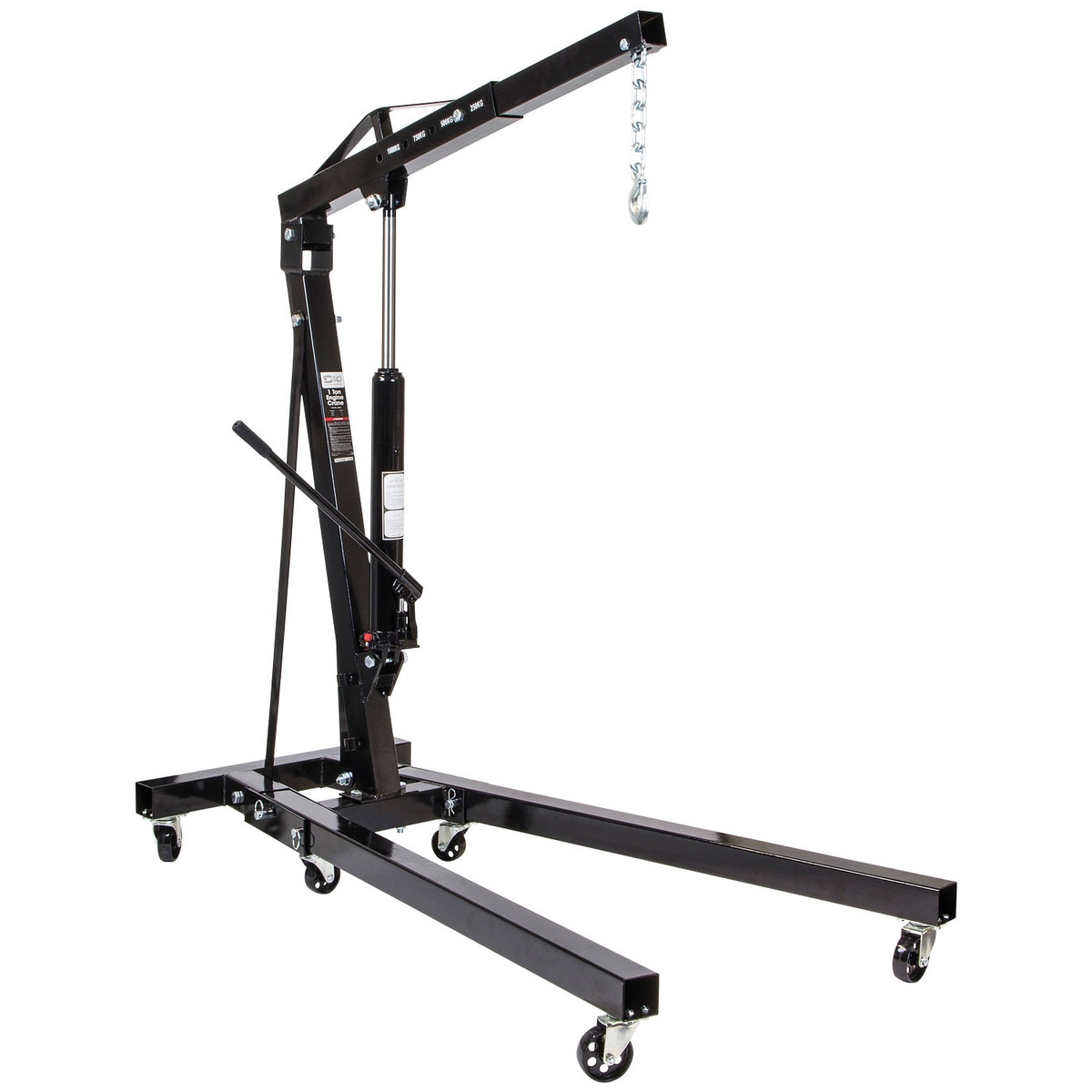

SIP 1 TON Foldable Engine Crane - 03685

Buy the SIP 1 TON Foldable Engine Crane - 03685 from Wow Tools for safe, controlled lifting of heavy vehicle components in the workshop.

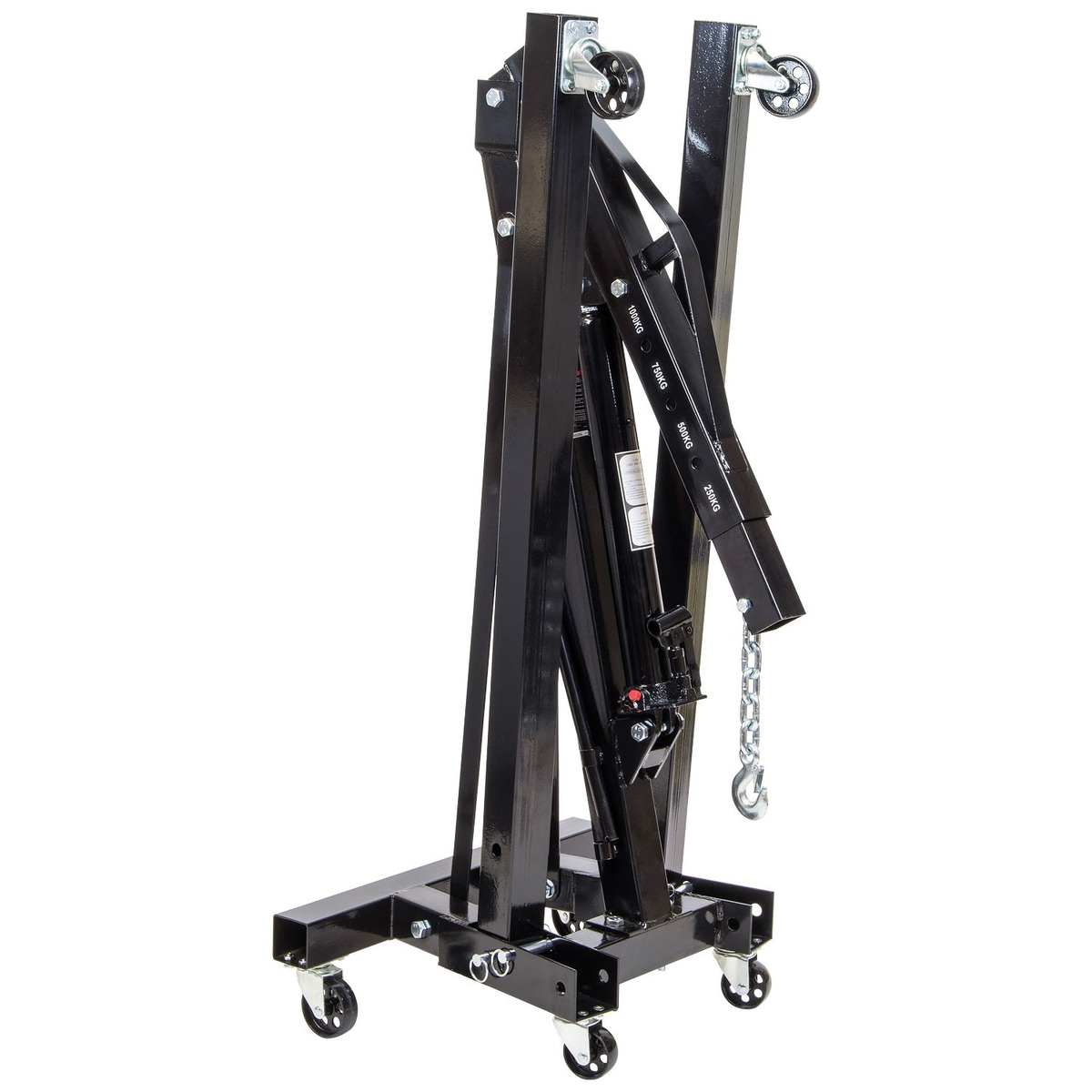

Designed for garages and professional workshops, this foldable engine crane makes lifting and positioning engines, gearboxes, transmissions, axles and suspension assemblies straightforward and secure. The heavy gauge steel construction delivers the strength needed for demanding jobs, while the foldable legs and boom allow the crane to be stored compactly when not in use.

A powerful hydraulic ram provides smooth, controlled lifting, and the multi position boom lets you balance reach and load capacity to suit the task in hand. Six swivel castors make positioning easy around vehicles and workshop floors, giving you the flexibility to work efficiently without compromising safety. It is suitable for most car, van and light commercial vehicle engines and driveline components up to 1 000 kg, making it a versatile choice for everyday workshop use.

Specification

Weight capacity - 1 000 kg (1 TON)

Maximum lifting height - Up to 2 050 mm

Hydraulic ram - Heavy duty 4 TON pump

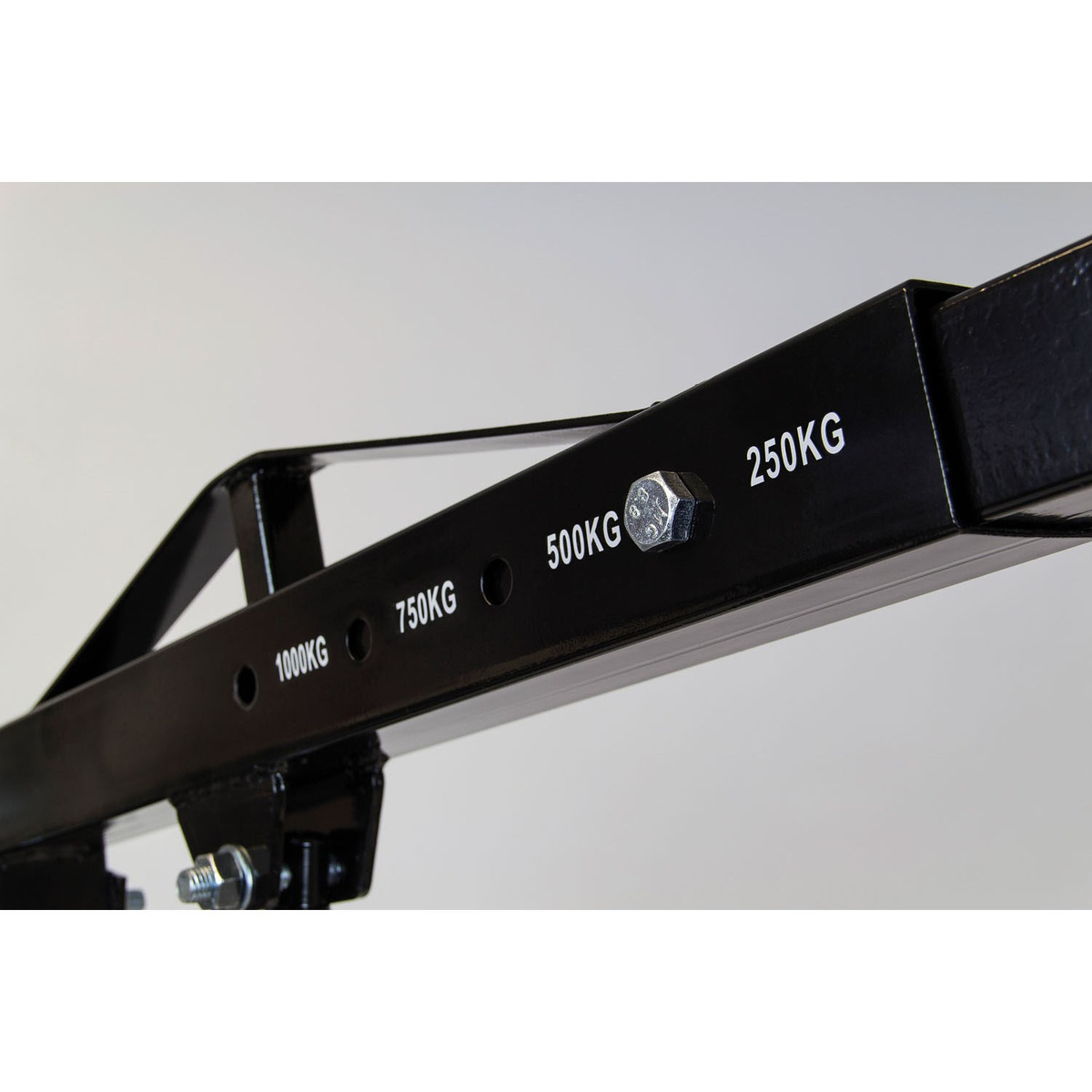

Boom adjustment - 4 hole precision boom with four load stages

Reach settings - 600 mm / 800 mm / 1 000 mm / 1 200 mm

Leg design - Foldable for compact storage

Mobility - Six swivel castors

Construction - Welded heavy gauge steel with corrosion resistant finish

Weight - 75 kg

Folded dimensions - 1 500 mm x 750 mm x 500 mm

Warranty - SIP 3 year warranty covering parts and labour

Whats included

SIP 1 TON foldable engine crane

Hydraulic lifting ram

Adjustable lifting boom

Swivel castors

Assembly hardware

Operating instructions

This is a lifting solution we recommend for workshops that need strength, stability and space saving storage. Built to work hard, easy to store and backed by SIP’s three year warranty, it is a dependable choice for everyday engine handling jobs.
