SIP 30 TON Shop Floor Press - 03695
SIP 30 TON Shop Floor Press - 03695
Buy the SIP 30 TON Shop Floor Press - 03695 from Wow Tools.

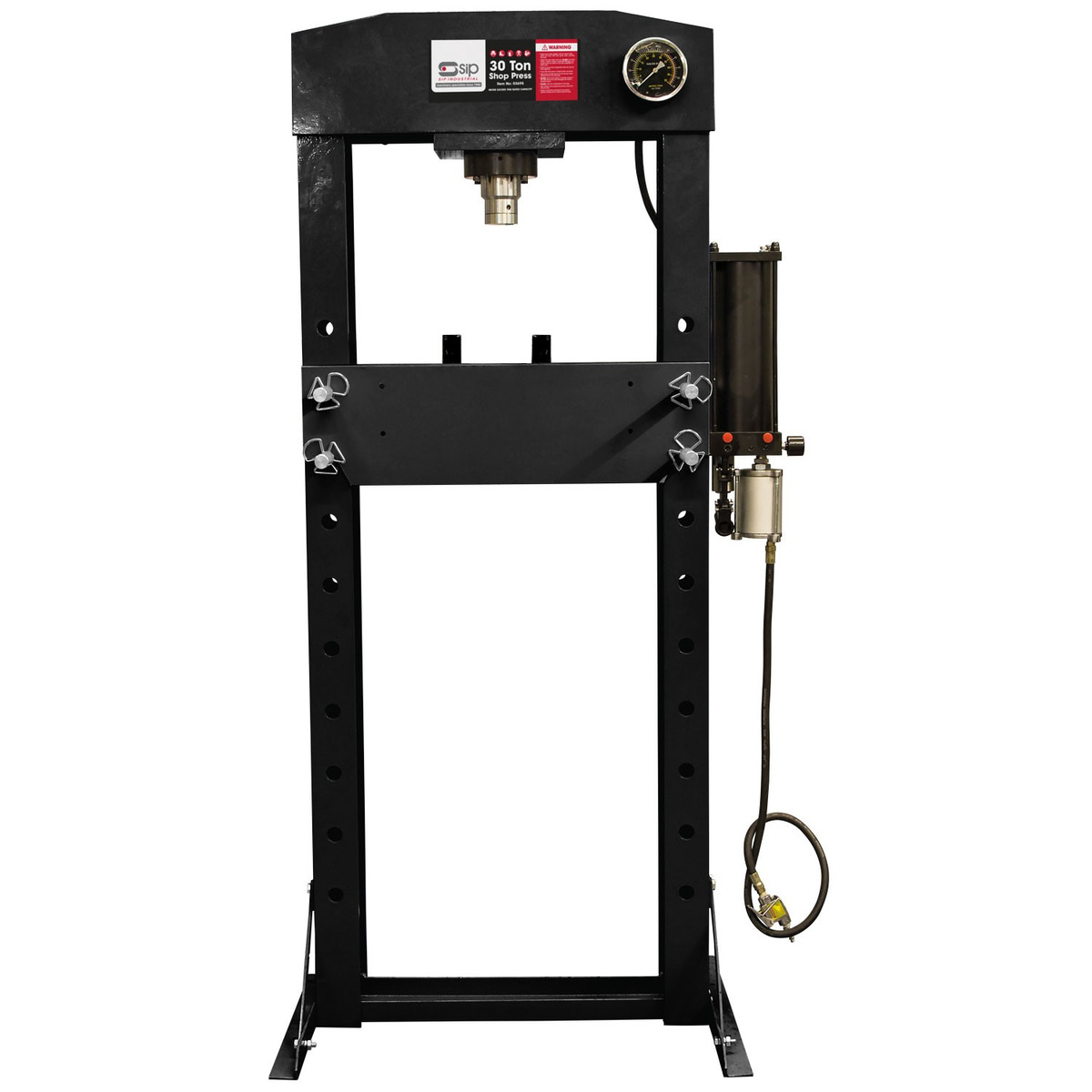

The SIP 30 TON Shop Floor Press is perfect for garage and workshop applications such as bending, straightening, riveting, bonding, forming and assembling. Its pneumatically assisted hydraulic ram and heavy-duty steel frame deliver rapid advance and reliable 30 tonne force, while the fully adjustable workbed adapts to a wide range of tasks - from bearing and universal joint removal to pulley installation.
Specification
Work range - 151 mm minimum to 1 031 mm maximum between bed and ram
Ram stroke - 150 mm for deep pressing operations
Capacity - 30 tonne hydraulic force at 700 bar system pressure
Frame construction - reinforced heavy-gauge steel for maximum rigidity

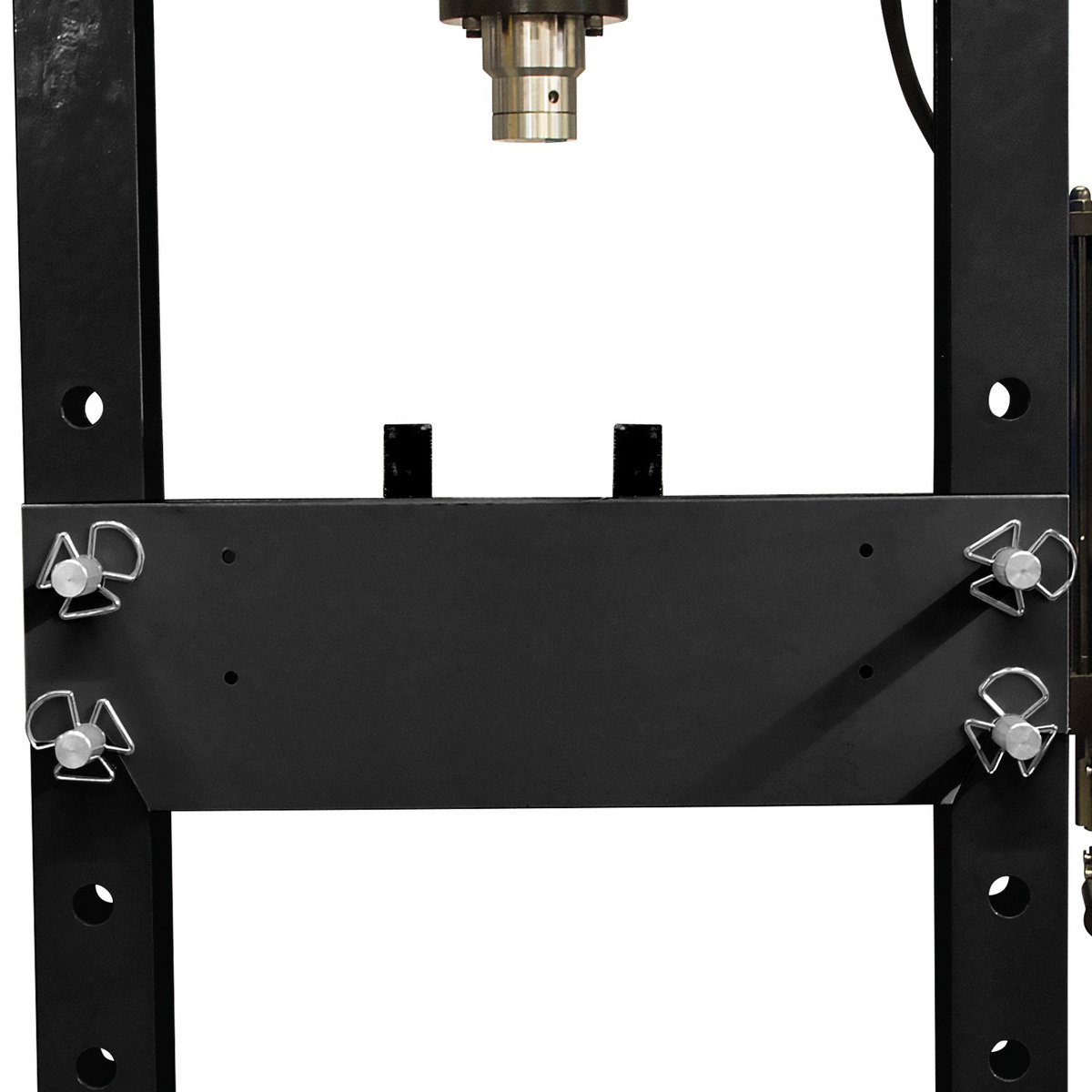

Workbed - fully adjustable with three height positions and removable support pins

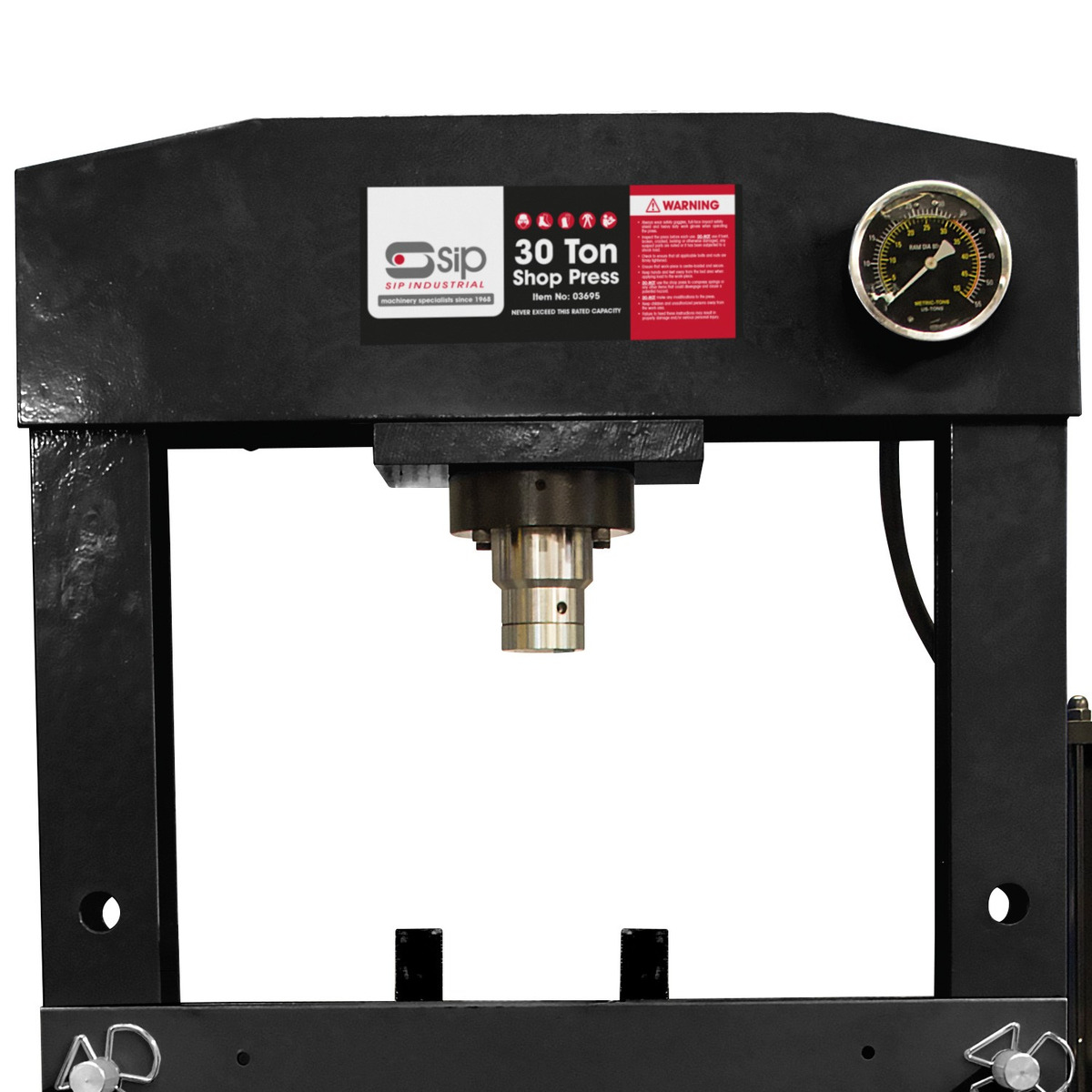

Gauge - integrated glycerine-filled manometer for precise pressure reading

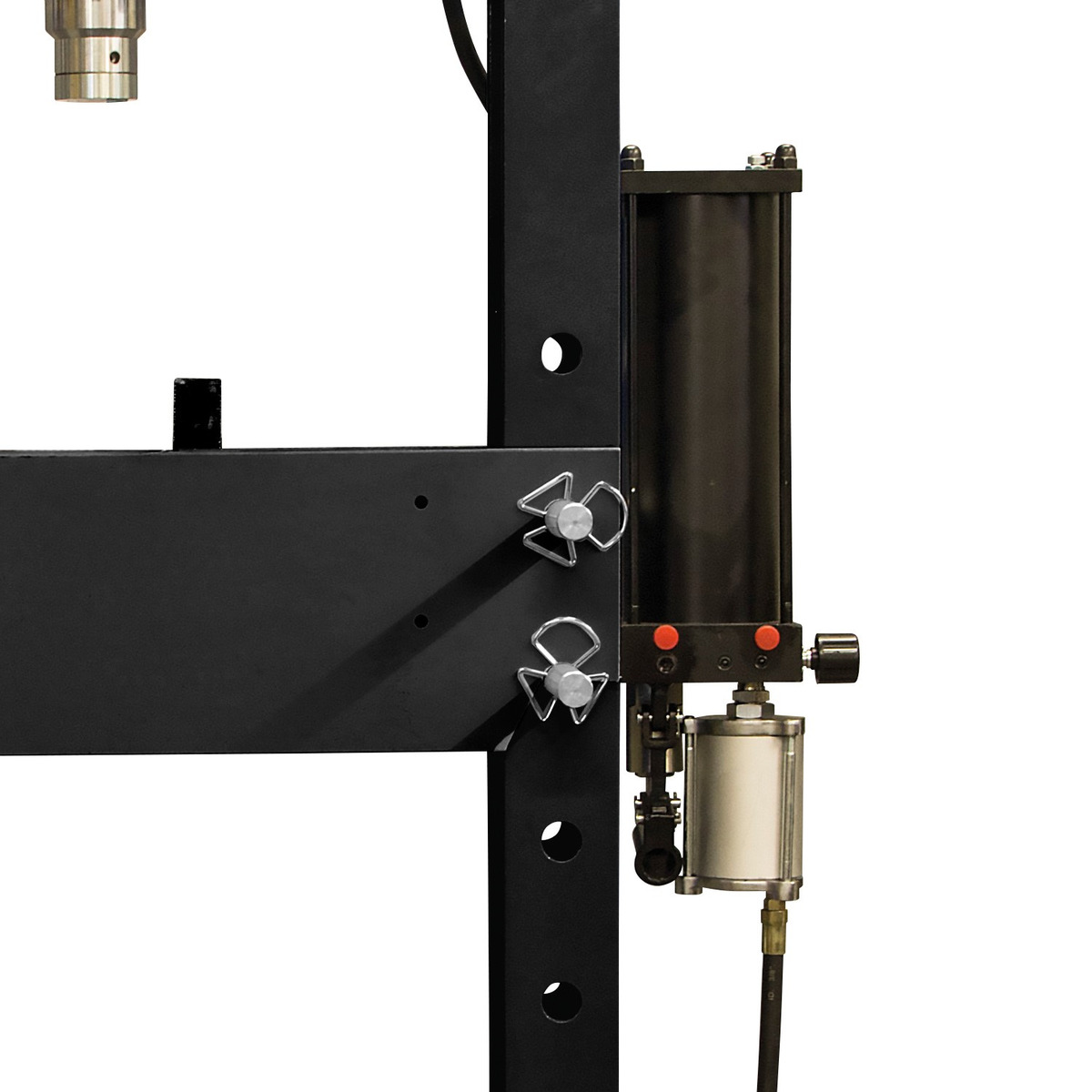

Press assistance - pneumatic boost for fast advance with minimal operator effort
Pump - manual lever pump with quick-advance and high-pressure stages

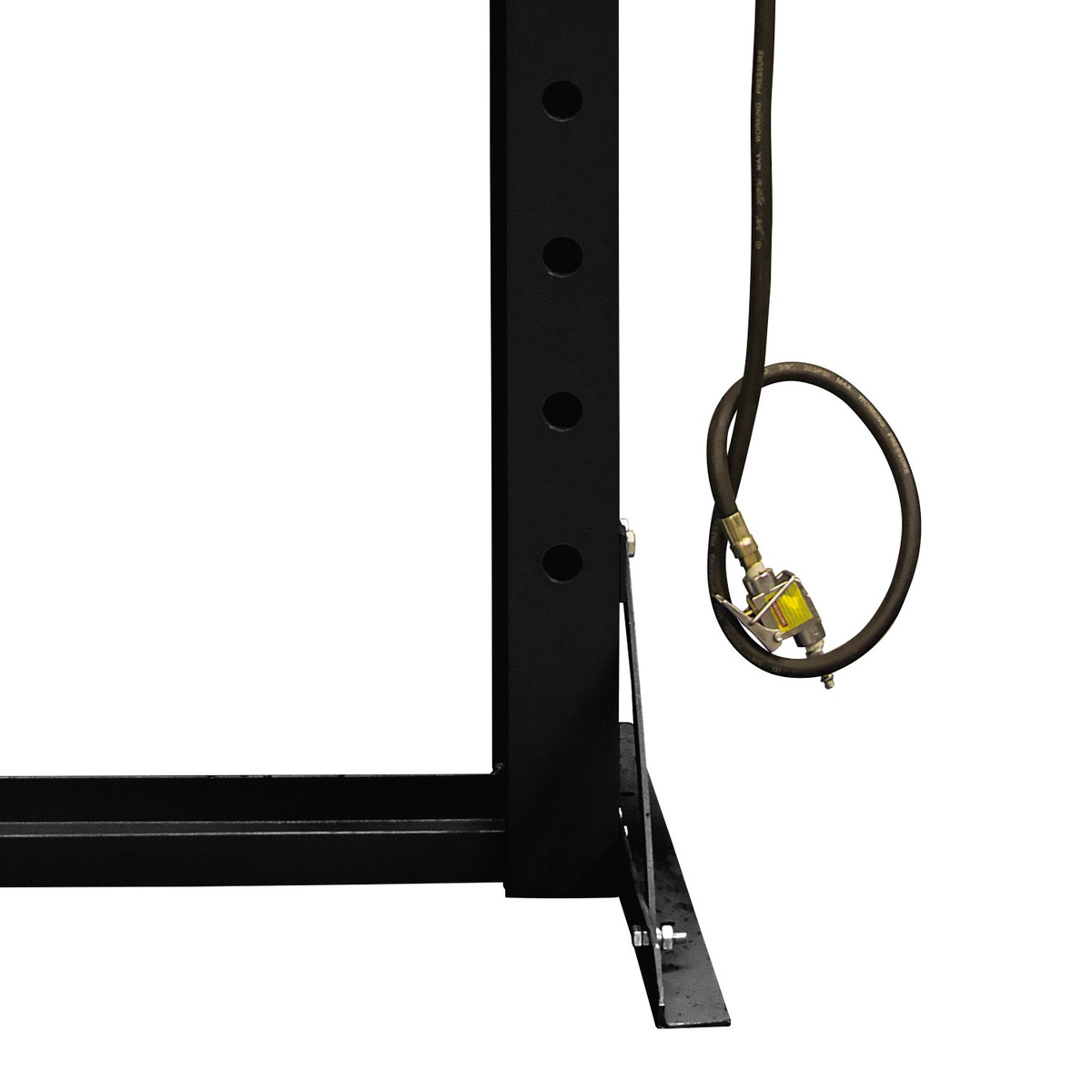

Base plate - 500 × 350 mm with drilled mounting holes for bolting
Weight & dimensions - 220 kg; 1 700 × 900 × 2 100 mm (L × W × H)
Warranty - SIP standard three-year warranty covering parts, labour and UK-based support
Experience the Wow Tools difference - each SIP shop press is pressure-tested, frame-straightness checked and gauge-calibrated in our UK workshop before dispatch, ensuring precise control, lasting durability and dedicated after-sales care on every job.
-
Description
- Product Code: 03695
- Brand: SIP
- Barcode: 5012713036950
