SIP 45 TON Shop Floor Press - 03691
SIP 45 Ton Shop Floor Press - 03691
Buy the SIP 45 Ton Shop Floor Press - 03691 from Wow Tools.

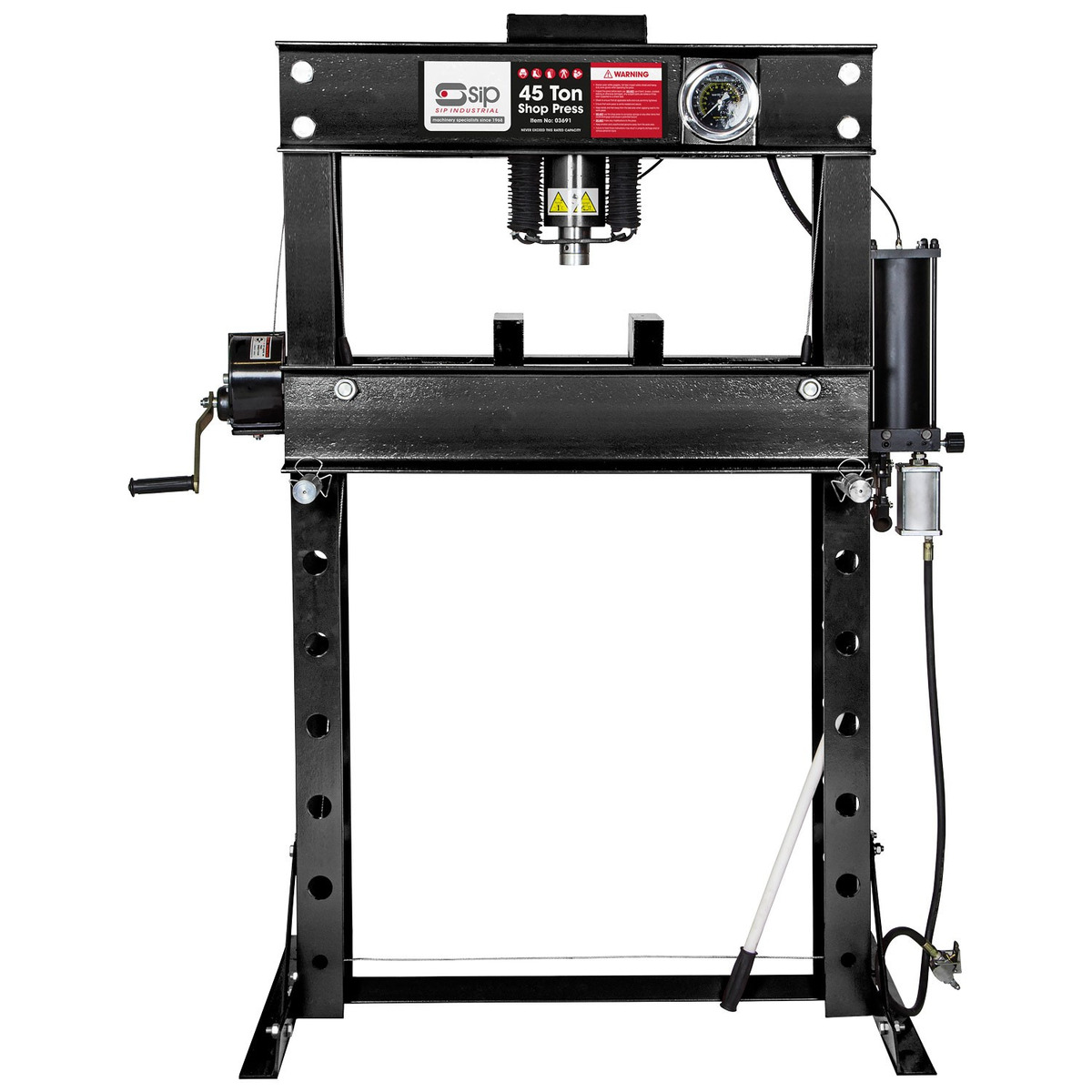

The SIP 45 Ton Shop Floor Press is perfect for garage and workshop applications such as bending, straightening, riveting, bonding, forming and assembling. Its pneumatically assisted hydraulic ram and heavy-duty steel frame deliver fast advance and reliable 45 tonne force, while the fully adjustable workbed adapts to tasks from bearing and universal joint removal to pulley installation.
Specification
Work range - 159 mm minimum to 859 mm maximum between bed and ram
Ram stroke - 190 mm for deep pressing operations
Capacity - 45 tonne hydraulic force at 700 bar system pressure
Frame construction - reinforced heavy-gauge steel for maximum rigidity
Workbed - fully adjustable with three height positions and removable support pins
Gauge - integrated glycerine-filled manometer for precise pressure reading
Press assistance - pneumatic boost for fast advance with minimal operator effort
Pump - manual lever pump with quick-advance and high-pressure stages
Base plate - 550 × 380 mm with drilled mounting holes for bolting
Weight & dimensions - 260 kg; 1 800 × 950 × 2 200 mm (L × W × H)
Warranty - SIP standard three-year warranty covering parts, labour and UK-based support
Experience the Wow Tools difference - each SIP shop press is pressure-tested, frame-straightness checked and gauge-calibrated in our UK workshop before dispatch, ensuring precise control, lasting durability and dedicated after-sales care on every job.
-
Description
- Product Code: 03691
- Brand: SIP
- Barcode: 5012713036912
SIP 45 Ton Shop Floor Press - 03691
Buy the SIP 45 Ton Shop Floor Press - 03691 from Wow Tools.
The SIP 45 Ton Shop Floor Press is perfect for garage and workshop applications such as bending, straightening, riveting, bonding, forming and assembling. Its pneumatically assisted hydraulic ram and heavy-duty steel frame deliver fast advance and reliable 45 tonne force, while the fully adjustable workbed adapts to tasks from bearing and universal joint removal to pulley installation.
Specification
Work range - 159 mm minimum to 859 mm maximum between bed and ram
Ram stroke - 190 mm for deep pressing operations
Capacity - 45 tonne hydraulic force at 700 bar system pressure
Frame construction - reinforced heavy-gauge steel for maximum rigidity
Workbed - fully adjustable with three height positions and removable support pins
Gauge - integrated glycerine-filled manometer for precise pressure reading
Press assistance - pneumatic boost for fast advance with minimal operator effort
Pump - manual lever pump with quick-advance and high-pressure stages
Base plate - 550 × 380 mm with drilled mounting holes for bolting
Weight & dimensions - 260 kg; 1 800 × 950 × 2 200 mm (L × W × H)
Warranty - SIP standard three-year warranty covering parts, labour and UK-based supportExperience the Wow Tools difference - each SIP shop press is pressure-tested, frame-straightness checked and gauge-calibrated in our UK workshop before dispatch, ensuring precise control, lasting durability and dedicated after-sales care on every job.
