iMEX 3 Multi-Line Laser Green Beam 012- LX22G - 2.0

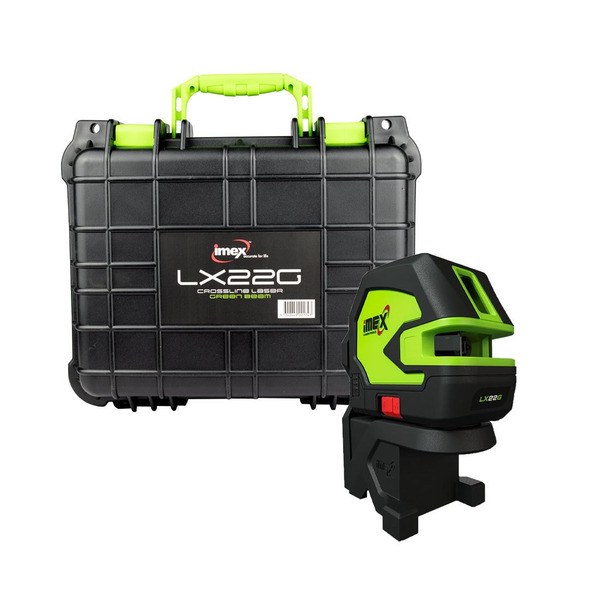

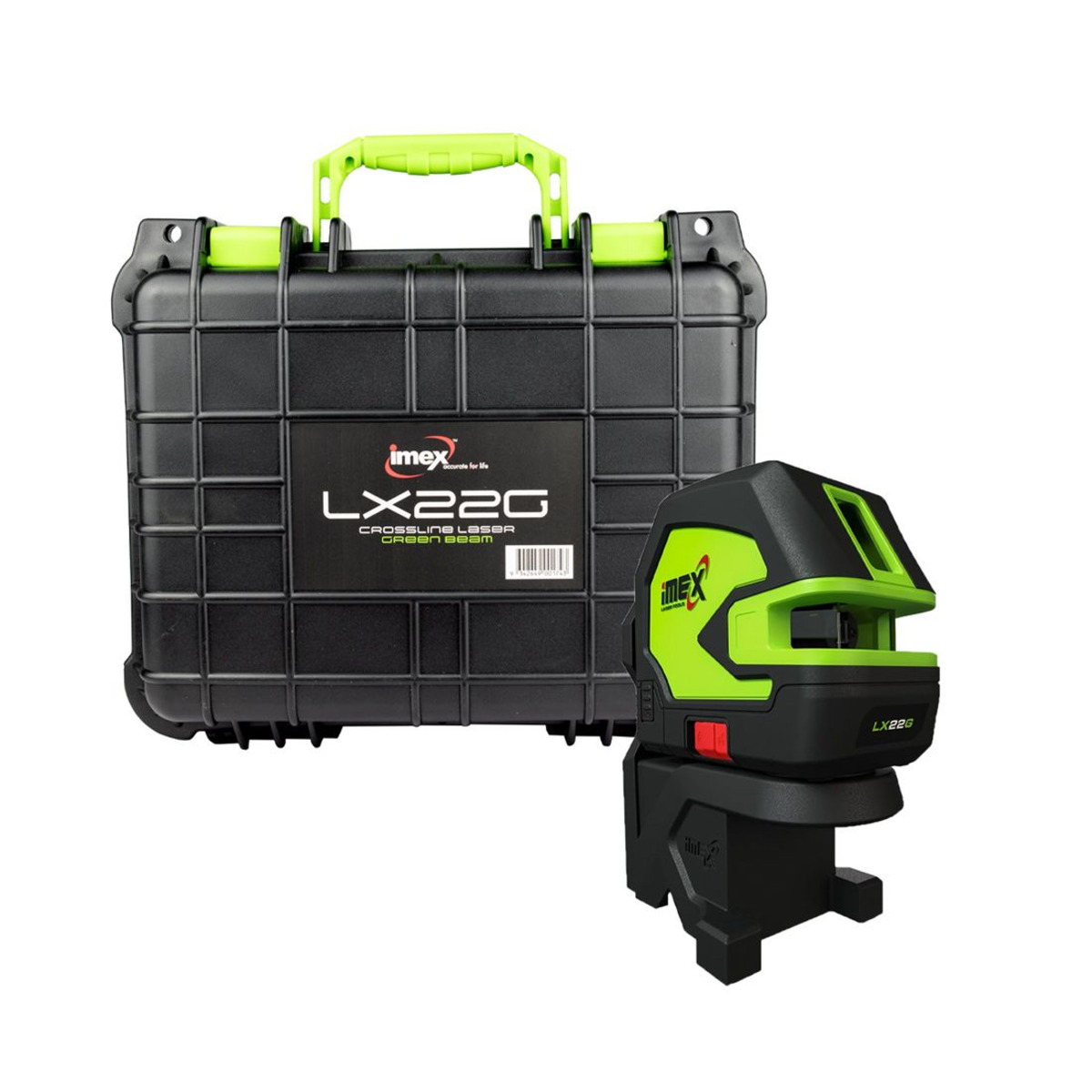

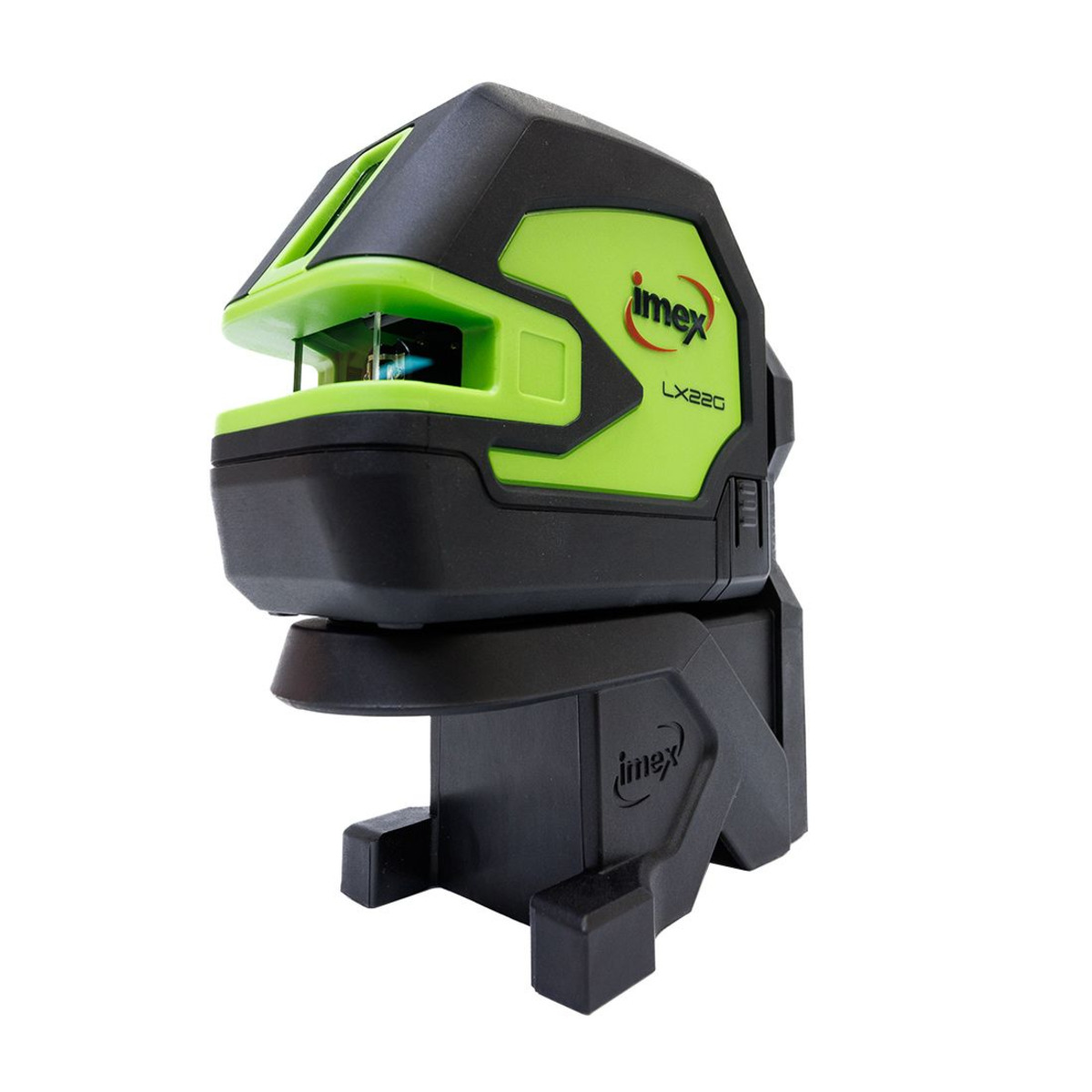

Imex LX22G Series 2 Green Beam Cross Line Laser With Plumb Spots In Carry Case
The Imex LX22G Series 2 is one of the most popular line lasers in the Imex range, due to the highly visible laser beam, simple and effective design and build quality. The LX22 offers exceptional performance with a super wide horizontal and vertical laser beam range, combined with up/down plumb spots for all types of interior levelling tasks.

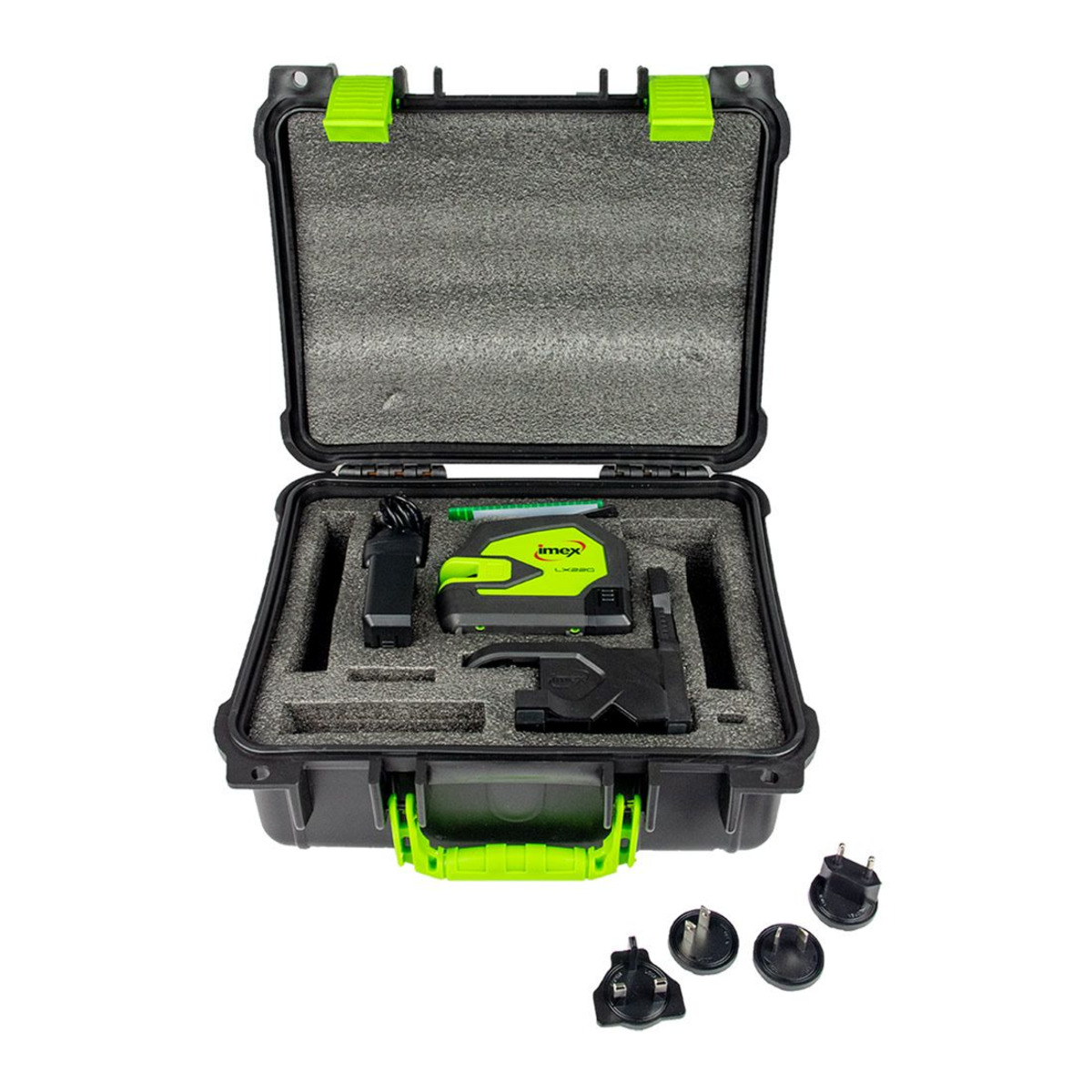

Supplied with a magnetic bracket and reflective magnetic target plate in a hard carry case.
APPLICATIONS
- Shop fitting and cabinet installation
- Wall and floor tiling
- Wall partitions
- Electrical switch and light placement
- Steel fabrication alignment and set out
- Interior decorating
- Window and door placement
FEATURES
- Green 'hyperbright' beams ensure maximum visibility
- Self levelling
- One vertical beam and one horizontal beam
- Switchable pulse mode for detector (sold separately)
- Plumb spots top and bottom
- 360° Turntable, magnetic bracket
- Quick release lithium battery
SPECIFICATION
- Laser Accuracy: +/- 3mm
- Laser Class: Class 2
- Laser Wavelength: 520 Nm - Green Beam
- Laser Distance: 15m Light Dependant
- Laser Distance With Optional Detector: 50m
- Laser Fan Angle: H 180° V 130°
- Power Source: 5.2Ah Lithium-Ion
- Charging Type: USB-C
- Run Time - Both Beams: 8 Hours (approx)
- IP Rating: IP54
- Operating Temperature: -10° - +50°
- Storage Temperature: -20° - +70°
-
Description
- Product Code: 012- LX22G - 2.0
- Brand: iMEX
- Barcode: 9342649001743
- Category: Lasers
